X Ray Film Digitizer - 8-1,Medi-7000

X Ray Film Digitizer

Item No.: 8-1,Medi-7000
Supplier Details
Country: Taiwan
City: Hsinchu City 30075
Address: No. 6, Industry East Road 3, Science Based Industrial Park
TEL: +886-3-5772155
Fax: +886-3-5772598
Online Showroom: 55 Products
High-Speed, Comprehensive Medical X-ray Film Digitizer

Fast scanning speed of just 7 seconds per chest film

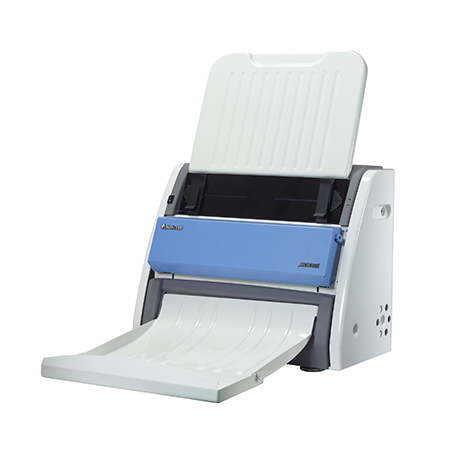

Microtek medical grade digitizer, the Medi-7000, can digitize X-ray films rapidly in 7 seconds per chest X-ray. With the advanced technology of the LED light source, the Medi-7000 can reach full brightness and on/off operation immediately. The Medi-7000 can scan various sizes of X-ray films up to 14 x 35 inches, letting user easily archive many kinds of X-ray films. Equipped with high optical resolution, excellent Dmax, and 16-bit grayscale, the Medi-7000 ensures that the scans will capture all the details presenting in any area of the film and offer the superior image quality to the medical professionals.
With the optional MiPAX systems of DICOM ready function, Medi-7000 is perfect for fast-paced environment of the medical doctor's office, QC Station and PACS system.

Features
  • FDA, CE MDD certified
  • 7 seconds per chest X-ray film scanning
  • No warm up time with LED light source
  • 4.0 Dmax, 600 dpi optical resolution (42 µm spot size, 12 lp/mm)
  • Covers various sizes of X-ray films from 2.5" x 2.5" to 14" x 35"
  • Auto-crop & Auto-deskew
  • Supports DICOM 3.0 and telemedicine
  • Optional versatile professional MiPAX-Xray software makes e-medical records management easy
Medi-7000 Brochure

Specifications
Optical Resolution: 600 dpi (42 um spot size, 12 lp/mm)
Image Sensor Type: CCD
Light Source: LED
Color Modes: 8/12/16-bit grayscale
Bit-Depth: 16-bit grayscale
Scanning Area: 14” x 35” (355.6 x 889 mm)
Scanning Speed: 7 sec @300 dpi, 14” x 17”
Optical Density: 0.12D ~ 3.7D, 4.0 Dmax
Dimensions (LxWxH): 330 x 526 x 435 mm (w/o tray)
738 x 526 x 696 mm (w/ tray)
Weight: 38.58 lbs. (17.5 kg)
OS Support: Windows
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

X Ray Film Digitizer

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
