Introduction:

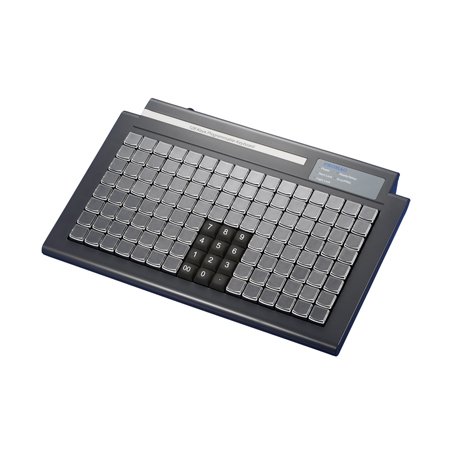

KB280 128-Keys programmable keyboard is specially designed for most dedicated applications, such as banking system, POS system etc. Each key can be programmable up to 128 characters and can be defined through PC by the user. The integrated magnetic stripe reader can read authorization cards, credit card or bank passbook. Also KB280 with built in Cherry mechanical key switch to assure of the long life data entry usage.
Features:
☆Reduce complex and repetitive keyboard task to a single keystroke
☆Programmable frequently used special characters or key sequences
☆Program frequently typed information like names and address
☆Provide the convenience of a dedicated keyboard for the unique system application, like POS system
·Cherry mechanical key switch with high reliability
·Relegendable keycaps for easily installing the labels with the programmed key name
·LED indicators for showing the status of the keyboard
·Supports two layers of multiple key commands
·HID K/B plug & play without driver.
·Support Multi-languages.
·Key-layout map can be download/upload.
·Auto-detect the status of caps lock and output correct upper or lower case.
·7 position programmable mechanical key lock(optional)
·ISO Standard 3 tracks & configurable MSR.(optional)

Applications:
·PC-based integrated POS system
·Special application system
·Banking terminal

Specifications:

Interface	HID USB connection
Operation System	All OS supporting PC type keyboard
Key pitch	19 mm
Key stroke	4 mm
MSR reader ( optional)	ISO standard 3 tracks output selectable
Key switch contact resistance	< 200m Ohms; Typ. 25m Ohms
Operation Temperature	5 ~ 45°C
Dimension	235 (L) x 350 (W) x 50 (H) mm

Ordering information:
·KB980 – USB interface 128 keys

Options
·ISO Standard 3 tracks & configurable MSR.
·7 positions programmable mechanical key lock
·Black or White housing are available
·Pre-cut label (20 sheets) & printing s/w are optional

※ Specification is subject to change without notice.
