Technical Specifications:
Item NO.TM-2502
Number of spindles: 5-AXES/2-AXES
Control system: AC Servo Motor
Data storage: Hard Disk
Drive axes: 5-AXES
Spindle Pitch(mm): 250mm
Maximum wire(mm): 0.7mm
Maximum of Winding speed: (According to skeleton size and wire diameter to adjust to change)
(350rpm speed is 0.25diameter.55mm in the case of the vertical distance)
Winding Direction: CW/CCW
Maximum Travel Distance X: 240 mm
Maximum Travel Distance Y: 175 mm
Maximum Travel Distance Z: 140 mm
Power supply: AC 3-PHASE 220V
Consumed power: 8KW
Machine Size: 125(L)X 80(W)x 200(H)cm
Machine Weight: 400KGS

Options:

1. Electronic tensioners
2. Spool cover and tensioner shelf

Feature:

1. This machine has Humanize screen & CNC controlled, The latest technology for high effective and fast changeover.
2. Unique winding jig design, easy to change the jig.
3. Labor-saving and cost saving.
4. Easy to operate, no need for professional and reduce training cost.

Specifications：

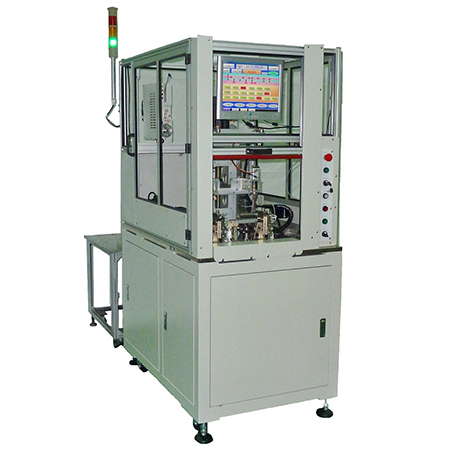

Stator coil winding machine adopts the most advanced PLC system in the world, all data can be set through the touch panel.
Stator coil winding machine also has the functions of automatic computation of wire length, automatic wire storage, automatic counting, automatic stop, stop memory and so on.
The iron core can rotate along 360o, the wire may be winded around the chamfer and round corner of the core.
Stator coil winding machine can solves the problem of large manual winding labor intensity, low working efficiency, incorrect turns of enclosed voltage transformer, greatly improves the product performance and production efficiency.
