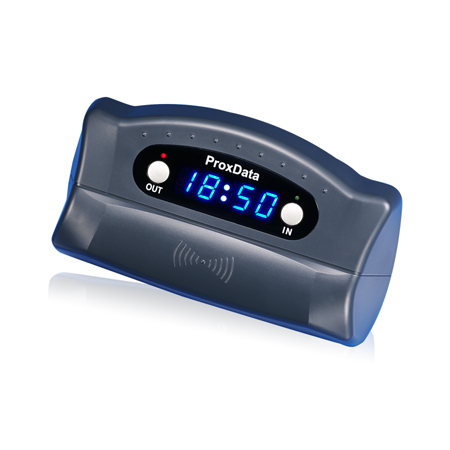

Online Time Recorder with Serial Interface

Introduction:
TR515S Serial-interfaced Time Recorder is simple to install and operate. This Time and Attendance terminal provides all the basic Time Recorder functionality in an attractive and cost-effective package.
Extremely versatile, TR515S terminal can be used as either a wall-mount or as a desktop device. An excellent viewing angle is provided in both orientations by rotating the unit 180 degrees.

Features:
☆Equipped with both serial interfaces, RS-232 & RS-485
☆Built-in Magnetic card, RFID or Barcode reader
☆Built-in ring relay for external ring (bell) control
·Bright, high-contrast blue LED display shows time of day, last 4 digits of the ID-code and error messages
·Approximately 8200 records storage capacity
·Daily bell schedule of up to 32 different entries
·Two buttons for clocking IN and OUT

※ Specification is subject to change without notice.

Specifications:

Display	4 x 7-segment Blue light LED
Card Type	Magnetic Card Reader: ISO TK 2 RFID Card Reader: 125KHz, ASK Barcode Card Reader: Code 39 Mifare: ISO 14443A
Database Capacity	Approximately 8200 records
Interface	Dual RS232 & RS485
Bell table	Up to 32 entries
Bell relay	Max 1A, 12V
Mounting	Wall-mount or desktop
Power Supply	DC 9V, 500mA
Operating Temperature	0 ~ 55° C
Operating Rel. Humidity	5 ~ 95%
Dimensions	W 185 x H 110 x D 51 mm

Ordering information:
·TR515SM – Magnetic Card Reader version
·TR515SR – RFID Card Reader version w/125Khz
·TR515SB – Barcode Card Reader version (visible red)
·TR515SF – Barcode Card Reader version (infrared)
·TR515SR-MF – Mifare Card version w/13.56Mhz
Also available for FeliCa and HID version
