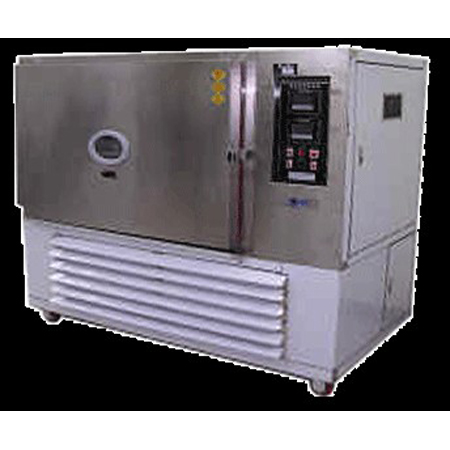

Humidity Chamber
| Item No.: | 10-1 |
-Dehumidification system: freezing latent heat dehumidification method
-Circulation system: fan circulation convection
-Evaporative, mining large windows, easy to clean, stainless steel heated steam humidifier, easy to clean, gradual water way to avoid the accumulation of dirt, maintain humidity stability.
-Heating system: stainless steel heat heater
-Insulation material: Rock wool and rigid PU foam insulation
-Observation window: High brightness 18WPL-PHILIPS, electronic ballast, five vacuum tempered glass
-Standard equipment: Stainless steel adjustable shelf board*2, cumulative timer-cannot return formula
-Test hole-Ø35mm, 60mm/each, movable wheel-PU material with break
-Control indicator*1, water tank*1, non-woven wet bulb*1
-Optional equipment: Logger
| Model | TEN-H40 | TEN-H50 | TEN-H60 | TEN-H70 | TEN-H80 | TEN-H100 | |
| Internal dimensions (W×D×H cm) | 40 x 40 x 50 | 50 x 50 x 60 | 60 x 50 x 70 | 70 x 50 x 120 | 80x70x80 | 100 x 100 x 80 | |
| External dimensions (W×D×H cm) | 96 x 68 x 80 | 100 x 78 x 90 | 74 x 101 x 127 | 81 x 72 x 172 | 132 x144 x 178 | 145 x 162 x 176 | |
| Temperature range | □ 0～100℃ □ -10～100℃ □ -40～100℃ | ||||||
| Humidity range | 30～95%RH | ||||||
| Temperature Accuracy | ±0.5～1.0℃ | ||||||
| Humidity Accuracy | ±3%RH | ||||||
| Internal and external material | Stainless Steel SUS#304 | ||||||
| Safety device | Leakage circuit breakers and overload protection - Japanese compressor overload protection, thermal protection device of humidifier - liquid expansion temperature limit protection device - liquid expansion aluminum rails Fuse - control power, air motor, water pump compressor delayed start, the emergency power unit | ||||||
| Freezing system | Cooled refrigeration system, imported environmentally friendly refrigerant compressor, aluminum fin evaporator, aluminum fin condenser, easily removable front cooling system cooling, easy to clean | ||||||
| Power supply | 220V/12A | 220V/13A | 220V/15A | 220V/17A | 220V/20A | 220V/35A | |
| Temperature and humidity control | Choose how you want to follow the required temperature and humidity control, such as a single point of control, or microcomputer programmable microprocessor PID automatic calculation of temperature and humidity control, English switch, LCD touch-screen, 800-segment program, each time can be setting 0 to 99 hours, 59 minutes, 999 cycles. SP can display a graph, you can connect the computer to monitor programming, with RS-232 Interface | ||||||
