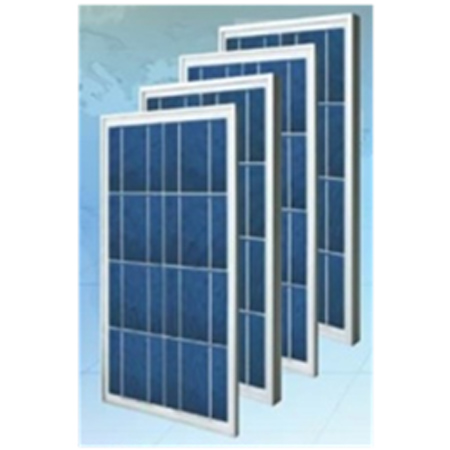

Solar Module - Polycrystalline Type (small power)

Solar Module

Item No.: Polycrystalline Type (small power)
Supplier Details
Country: Taiwan
City: Tainan City
Address: No,168 Yongkehuan Rd.,Yongkang Dist.
TEL: +886-06-2022202
Fax: +886-06-2012520
Online Showroom: 41 Products
Normal application for Solar Outdoor Lighting.
-Bypass diode minimizes the power drop by shade.
-White tempered glad, EVA resin, weather proof film and anodized aluminum frame to provide efficient
Protection from the severest environmental conditions
-Waterproof (UL94,V-0). Perfect for grid applications

Specification
Polycrystalline Type- Small Power

Electrical Characteristics

Max. Power at STC (Pmax)

35W

50W

135W

Operating Voltage (Vmp)

18.18V

20.40V

18.14V

Operating Current (Imp)

1.9A

2.51A

7.44A

Open Circuit Voltage (Voc)

21.92V

24.56V

21.74V

Short Circuit Current (Isc)

2.10A

2.71A

8.04A

Module efficiency %

11.37%

11.82%

13.78%

Mechanical Characteristics

Outer Dimension

804*384*40mm

805*525*40mm

1471*666*40mm

Weight

4.7kgs

5.8kgs

11.5kgs

Modules per Pallets

40pce

40pce

26pce



We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Solar Module

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
