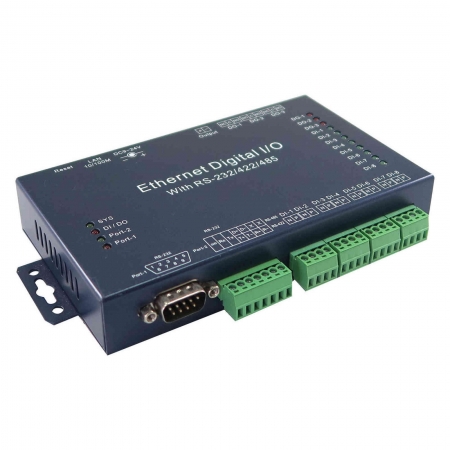

Specifications:

CPU：32-bits ARM-Cortex-M4 CPU , 120 MHz ( TI )
RAM：256K bytes SRAM
ROM：1024K bytes Flash ROM

Ethernet
Port Type：RJ-45 Connector
Speed：10 / 100 Mbps ( Auto Detect )
Protocol：ARP , IP , ICMP , UDP , TCP , HTTP , DHCP , TELNET
Mode：TCP Server / TCP Client / UDP / Virtual Com / Pairing
Setup：HTTP Browser Setup ( IE )
Security：Login Password
Protection：Built-in 1.5KV Magnetic Isolation

Serial Port x 2 ports
Port：1 x RS232 ( DB9 ) , 1 x RS422/485 ( Auto Detect )
Speed：300 bps ~ 230.4 Kbps
Parity：None , Odd , Even , Mark , Space
Data Bit：5 , 6 , 7 , 8
Stop Bit：1 , 2
Port-1：RS232 Pins : Rx , Tx , GND , RTS , CTS , DTR , DSR , DCD
Port-2：RS422/ 485
RS422：Rx+ , Rx- , Tx+ , Tx- ( Surge Protect , Over current protect )
RS485：Data+ , Data- ( Surge Protect )
Built-in RS422 / RS485 pull high / low Resistor
15KV ESD for all signals

Digital I/O
3 x Digital Output
Relay ( Active High /Active Low Selectable )
120V AC@10A , 240V AC@7A , 24V DC@10A
8 x Digital Input
3000VDC Isolation Protect ( Active High /Active Low Selectable )
Dry contact : Logic level 0 : close to GND , Logic level 1 : open ckt
Wet contact : Logic level 0 : 0~3 V , Logic level 1 : 10 ~ 30 V

Watch Dog Function
IP Search Utility：Support Win-7 , Vista , Win-XP , Win-2003 server , Win-2000
Virtual COM：Support Windows 2000 / 2003 / XP / Vista / Win-7
Power：DC 9 ~ 24 V , 500mA @ 12VDC
LED Lamp：SYS ( PWR ) , DI/DO , Port 2(RS-422/485), Port 1 (rs-232)
Operating Temperature: 0 ~ +70 ℃
Storage Temperature : -20 ~ +85 ℃
Dimension：120 x 80 x 25 mm ( W x D x H )
Weight：800 g
Din-Rail and Panel mounting ( Optional )
Regulatory Approval：CE, FCC, RoHS
Warranty：1 year
