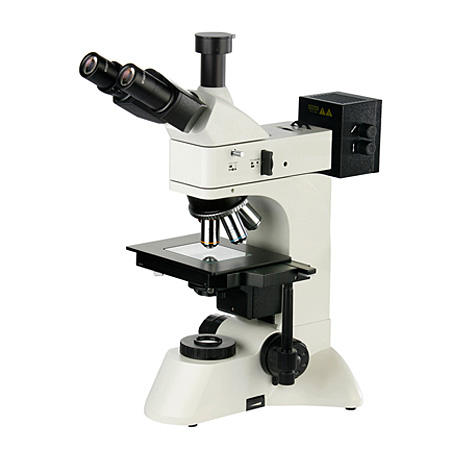

Reflected Metallurgical Microscope - MJ32

Reflected Metallurgical Microscope

Item No.: MJ32
Supplier Details
www.microscope-camera-manufacturer.com
Country: China
City:
Address:
TEL: +--
Fax: +--
Online Showroom: 41 Products
Upright bight or dark transmitted or reflected light metallurgical microscope MJ32 is a multi-purpose industrial inspection optical instrument. Equipped with bright or dark field objectives, wide field eyepieces and integrated polarization observation device, the Kohler illuminator used in the transmitted and reflected illuminating system, MJ32 can offer you whole clear and uniformity field. It is the ideal instrument to inspect semiconductor silicon wafer, LCD floor plate, electrocircuit plate, solid powder and all kind of industry sample that translucent or opaque.MJ32 is widely used in the field of biology, metallography, mineralogy, precision engineering, electronics, etc.





Features of MJ32:
▲ Infinity optical system and modularization function design.

▲ Long W.D bright or dark field plan objectives (no cover glass), widely and clear field view.

▲ Wide-field plan eyepieces Ф22mm.

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

▲ Integrated polarization observation, 360°circumrotated.

▲ The Epi- illumination is 12V 50W halogen lamp and the lamp box cover can be revolved, replacing lamp facility and safety. The transmitted illumination is 12V 30W halogen lamp and adding radiator.

▲ 100% light flux, suit to dark field microphotography.



Standard Configuration:

Model

MJ32

Eyepiece

Wide field WF10X(field number:¦µ22mm)

objective

Infinity plan achromatic bright or dark field with long work distance. (no cover glass)

PL L5X/0.12 B.D (Work distance):9.7 mm

PL L10X/0.25 B.D (Work distance):9.3 mm

PL L20X/0.40 B.D (Work distance):7.2 mm



Eyepieces tube

PL L40X/0.60 B.D (Work distance):3.0 mm

Trinocular, Inclination of 30˚, (Integrated analyzer and switching freely)

Epi- illumination system

12V 50W halogen lamp, adjustable brightness

Integrated field diaphragm, aperture diaphragm and filter switching device. Push-pull type analyzer and polarizer

Focus system

Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.

Nosepiece

Quintuple (Backward ball bearing inner locating)

Stage

Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm)



Optional accessories:

Name

Sort/Technique parameter

eyepiece

Dividing eyepiece(field number:¦µ22mm)    0.10mm/Div

Objective

Infinity plan achromatic bright or dark field objective with long W.D (no cover glass)

PL L50X/0.70B.D Work distace:2.50mm

PL L60X/0.70 B.D  Work distace:1.90 mm

PL L80X/0.80B.D  Work distace:1.25mm

PL L100X/0.85B.D  Work distace:0.22mm

Filter (For transmitted)

Green filter

Yellow filter

Digital camera

MD10/20/30/50/90

MC15/20/30/50
