Clutches Brakes
| Item No.: | PCCU |
Supplier Details
Country: Taiwan
State: TAIWAN
City: NEW TAIPEI CITY 221
Address: NO.507,SEC.3,DA TUNG RD.,XIZHI DIST.,
TEL: +886-2-86480983
Fax: +886-2-86480915
Online Showroom:
30 Products

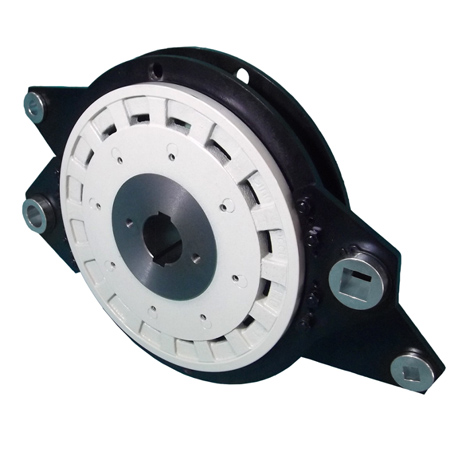

Pneumatic Clutch Brake
Specification：
Remark：
1. PCCU is a integrate product that integrating with clutches and brakes. It is widely used in metal manufacture, woodcraft machinery, papermaking machinery or textile machinery.
2. The size of axle is mini, light and low inertia, in can increase working efficiency.
3. It has stable property no matter the speed is fast or slow.
4. The clutches and brake are work in a flash, it won’t reduplicate the torque. Do not need to adjust the time.
5. It can replace the brake pad without separating the machine.
6. PCCU is work by two sides of shaft hole that providing the air into air room and compress the piston.
7. Piston compress the brake spring, and release the brake then connect with the clutch.
8. The brake spring will return when releasing the air, and apply the brake then separate the clutch.
9. L and S type of disc is preventing the inversion by the pole
10. Brake pad is made with non- asbestos materials.
Specification：
|
Size |
Clutches torsion (0.6MPa) |
Clutches torsion (0.55MPa) |
Brakes torsion |
Weight |
|
PCCU 29 |
300 (Nm) |
260 (Nm) |
180 (Nm) |
9 (kg) |
|
PCCU 40 |
630 (Nm) |
550 (Nm) |
350 (Nm) |
16 (kg) |
|
PCCU 50 |
1250 (Nm) |
1050 (Nm) |
700 (Nm) |
32 (kg) |
|
PCCU 61 |
2500 (Nm) |
2150 (Nm) |
1500 (Nm) |
60 (kg) |
|
PCCU 71 |
5000 (Nm) |
4250 (Nm) |
3000 (Nm) |
100 (kg) |
|
PCCU 74 |
6000 (Nm) |
5150 (Nm) |
3500 (Nm) |
135 (kg) |
Remark：
1. PCCU is a integrate product that integrating with clutches and brakes. It is widely used in metal manufacture, woodcraft machinery, papermaking machinery or textile machinery.
2. The size of axle is mini, light and low inertia, in can increase working efficiency.
3. It has stable property no matter the speed is fast or slow.
4. The clutches and brake are work in a flash, it won’t reduplicate the torque. Do not need to adjust the time.
5. It can replace the brake pad without separating the machine.
6. PCCU is work by two sides of shaft hole that providing the air into air room and compress the piston.
7. Piston compress the brake spring, and release the brake then connect with the clutch.
8. The brake spring will return when releasing the air, and apply the brake then separate the clutch.
9. L and S type of disc is preventing the inversion by the pole
10. Brake pad is made with non- asbestos materials.
