Keypad Switch Circuit - CR2

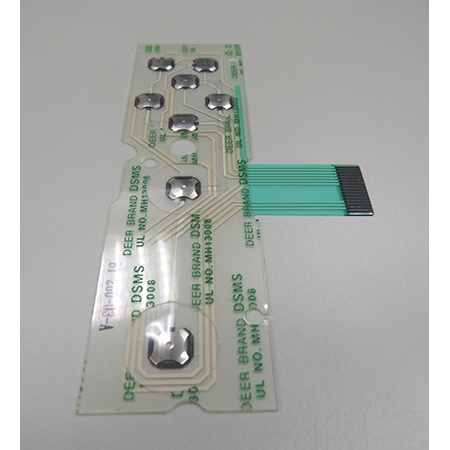

Keypad Switch Circuit

Item No.: CR2
Supplier Details
Country: Taiwan
City: New Taipei City 235
Address: 2F., No.4, Ln. 348, Sec. 2, Zhongshan Rd., Zhonghe Dist.
TEL: +886-2-22494282
Fax: +886-2-22494359
Online Showroom: 32 Products
Remote control circuit used in instruments and equipment
1. Material: PET film, metal dome, PET printed Circuit
2. The outlet end of the insulating printing inks to avoid interference during assembly.
3. The end of the PIN printed carbon ink, more wear-resistance and oxidation.
4. The panel can be used with rubber or plastic panels.
5. To get a better tactile impression because it combined with metal dome.
6. Easy to be assembled.
7. Drawer type connector.

  Specifications

  Mechanical

      -Actuation force: 180 to 400g (6 to 14 oz)

      -Switch stroke: 0.6 to .1.5mm

  Electrical

     -Maximum circuit rating: 35 V(DC)100mA 1W

     -Contact resistance: 10Ω~500Ω

     -Insulation resistance: 100 MΩ at 100V DC

     -Dielectric withstand: 250 V Rms (50~60 Hz 1min.)

     -Life expectancy: ≧1,000,000 times


We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Keypad Switch Circuit

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
