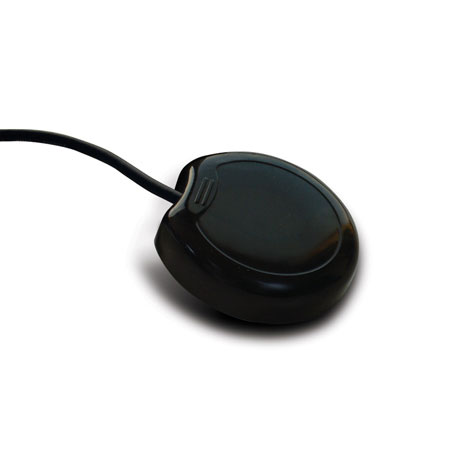

Plug-Navigate-Position is the new GM-33 Receiver/Antenna concept in mobile navigational GPS solution. When integrated with your computer, real-time position of your vehicle helps you navigate to your next destination. The GM-33 mobile locator is a low cost/ high quality GPS solution for AVL, Fleet Management System and Marine Navigational Aids. The unit is a single GPS Receiver/Antenna in a low profile, waterproof enclosure with bolt mount. It interfaces to a RS-232 or a USB serial comm port of your computing device that utilizes NMEA 0183 data output sentences.

The GM-33 Mobile Locator provides real time GPS position, speed, distance travel and heading information in NMEA-0183 format (GPRMC, GPGGA, GPGSV, GPGLL, GPGSA, etc.) to your portable PC, PDA or Palmtop.


Applications :
．Navigation and positioning
．Finding streets and routes via GPS map software
．Travel/track planning
．Application for Marine Navigation
．Fleet management GPS system
．In-car navigating/locating for public safety and emergency
．AVL GPS function

Specifications :
PHYSICAL
Dimension:53mm( L) x 44mm (W) x 16mm( H)
Weight:214 gram (USB)
Enclosure:High impact, corrosion-proof
PC (polycarbonate) resin
Construction:Ultrasonic welded, fully waterproof
Mounting:Magnetic mount

ENVIRONMENTAL
Temperature:Operating: 0 ~ +70 degree C
Storage: -20 ~ +85 degree C
Humidity:95% non-condensing

COMMUNICATION
Protocol:NMEA V3.01
Signal level:EIA/TIA-232 or USB 1.1

INTERFACE CAPABILITY
Standard Output Sentences:GGA, RMC, GSV*5,VTG, GSA*5

PERFORMANCE
Built-in Antenna:Highly-reliable ceramic patch
Sensitivity:-158dbm
SBAS:No support
Receiver architecture:32 parallel channels
Start-up time:3sec. typical (hot start)
35 sec. typical (warm start)
41sec. typical (cold start)
Position accuracy:Without aid: 3.3 m CEP
DGPS (RTCM): 2.6 m
Velocity accuracy:0.1 Knot RMS steady state
Update Rate:1~5 Hz
Power Supply:USB @ 5V
RS-232 @ 3~5V
Power Consumption:Acquisition: 59mA (RS-232)(USB)
Tracking: 33mA (RS-232)(USB)
Baud Rate:4800 bps

POWER CABLE
Length:5m
