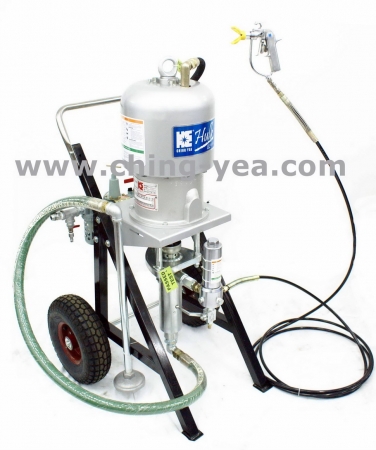

Cosmostar Hulk 10in 70:1 Airless Sprayer

CHING-YEAs HULK sprayers offer highly reliable performance even in the harshest environment. Combination of extreme pressure ratio, high flow rate and rugged design make HULK sprayers ideal for handling extremely viscous fluids. CHING YEAs HULK is the answer for your heavy-duty spray applications.

Feature and Benefits
Higher pressure ratio for higher flows, longer lines and better atomization.Wide spraying and coating covered area

Typical Applications
Marine and shipyard, Off-shore, Rail cars and other transport vehicles Chemical and petrochemical plants, Public works facilities Pulp and paper mills, Nuclear and conventional power facilities, Pipeline Metals and mining

Typical Fluids Handled
Industrial protective coatings, High solids epoxy primers and coatings High solids polyurethane coatings Waterborne coatings

Air Motor diameter
10 in (Hulk)
Pressure ratio
70:1
Maximum Fluid Working
5600 PSI (385 Bar)
Maximum Air Input Pressure
80 PSI ( 5.5 Bar)
Maximum volume flow rates
11.0 LPM
Maximum Recommended Pump Speed
60 CPM
Air inlet size
3/4 npt(f)
Fluid inlet size
1-1/2 npt(f)
Fluid outlet size
1 npt (f)
