Heat Treating Furnace
| Item No.: | LM series |
Supplier Details
Country: Taiwan
City: Kaohsiung City 802
Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.
TEL: +886-7-7225117
Fax: +886-7-7232465
Online Showroom:
74 Products
Application:
- Redox
- Powder sintering, ceramic sintering, metal sintering
- Heat Treatment
- Ashing
- Melting
Specification:
1. Max temperature: 1200℃
2. Chamber inner dimension: 100x150x100mm
3. Capacity: 1.5L
4. Power: 0.6kw
5. Compact muffle furnace, 90° tiltable for horizontal/vertical operation.
6. Option: Exhaust device, gas flushing, post combustion burner, program controller with max. 4-program steps. Program controller SE 40 Li with 25 programs and steps each, interface for PC.
【Brand： Linn/German 】
- Redox
- Powder sintering, ceramic sintering, metal sintering
- Heat Treatment
- Ashing
- Melting
Specification:
1. Max temperature: 1200℃
2. Chamber inner dimension: 100x150x100mm
3. Capacity: 1.5L
4. Power: 0.6kw
5. Compact muffle furnace, 90° tiltable for horizontal/vertical operation.
6. Option: Exhaust device, gas flushing, post combustion burner, program controller with max. 4-program steps. Program controller SE 40 Li with 25 programs and steps each, interface for PC.
【Brand： Linn/German 】

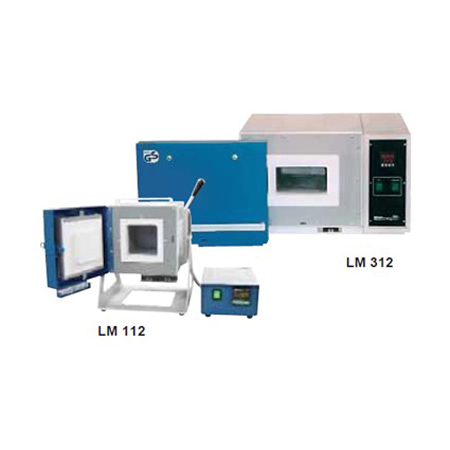

| LM 312, 412, 512 Tmax 1340 °C | |||
| Muffle furnaces for heat treatment. Various temperature controllers available. | |||
| Model | Liters | inside dimensions (mm) | Kw |
| LM 312 | 5,0 | 175 x 300 x 95 | 2,8 |
| LM 412 | 7,9 | 175 x 300 x 150 | 3,2 |
| LM 512 | 18,5 | 200 x 400 x 230 | 6,0 |
