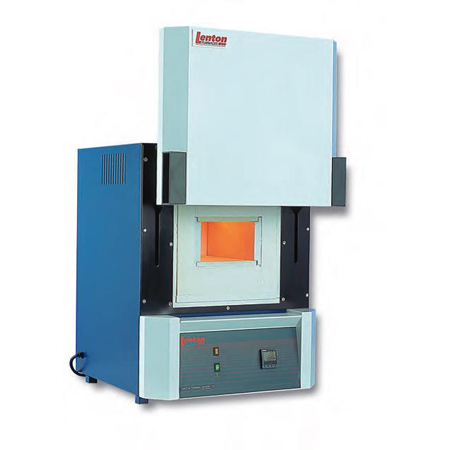

A robust range of laboratory chamber/box furnaces, providing an excellent level of versatility without compromising quality, safety or reliability.
All units in the ECF range have a maximum operating temperature of 1200 ℃. Maximum temperature uniformity is provided by two side-wall heating elements manufactured from high temperature resistance wire spirals embedded into cast refractory slabs. An exhaust chimney is fitted as standard.
The insulated door opens upwards and outwards keeping the hot face insulation away from the operator. A door switch isolates power from the heating elements whenever the door is opened for maximum operator safety. The use of double skin construction allows natural air convection to maintain a cool outer case.
Optional extras:
Metal retorts - a variety of metal retorts is available for use with this range of furnaces. This type of retort is generally used to cater for the following process conditions:
a. to maintain controlled atmospheres within the heated chamber;
b. to protect the heating elements and insulation from chemical attack by aggressive volatiles given off by fluxes acids, etc.
Note: Ceramic liners may also be used for this particular application - refer to the AWF furnace section.
Four sided heating - this option upgrades the standard two sided heating to four sided heating and is recommended in the following circumstances:
a. for use with metal retorts and ceramic liners;
b. to improve chamber temperature uniformity to meet specific process requirements;
c. to uprate the furnace power to cope with large loads.
Ashing option: The ECF chamber furnaces can be modified to incorporate an air exchange system, including a larger chimney, which makes them suitable for the small scale ashing of a wide variety of materials (this option can only be fitted at the time of order).
【Brand： Lenton/UK 】

Model	Max Temp.  (℃)	Max continuous Temp.  (℃)	Time to Temp.  (mins)	Internal Dimension mm H/W/D	External Dimension mm H /W /D	Max Power  (Kw)	Cpapcity (L)	NW  (Kg)
ECF 12/4	1200	1150	95	101 /152 /254	655 /500 /520	2.0	3.9	47
ECF 12/6	1200	1150	115	127 /152 /305	700 /555 /615	2.0	5.9	58
ECF 12/10	1200	1150	156	127 /178 /406	700 /555 /615	2.6	9.2	64
ECF 12/22	1200	1150	160	203 /228 /454	870 /715 /760	5.0	21	125
ECF 12/30	1200	1150	180	203 /305 /454	870 /715 /760	5.0	28	130
ECF 12/45	1300	1150	150	305 /305 /454	870 /715 /760	6.0	42	130
AWF12/5	1200	1150	20	150 /150 /200	655 /500 /520	2.0	4.5	41
AWF12/12	1200	1150	35	200 /200 /300	700 /555 /615	3.0	12	54
AWF12/25	1200	1150	30	250 /250 /400	755 /605 /715	6.0	25	67
AWF12/42	1200	1150	45	305 /305 /450	870 /715 /760	9.0	42	117
AWF13/5	1300	1250	30	150 /150 /200	655 /500 /520	2.0	4.5	41
AWF13/12	1300	1250	45	200 /200 /300	700 /555 /615	3.0	12	54
AWF13/25	1300	1250	40	250 /250 /400	755 /605 /715	6.0	25	67
AWF13/42	1300	1250	50	305 /305 /450	870 /715 /760	9.0	42	117
