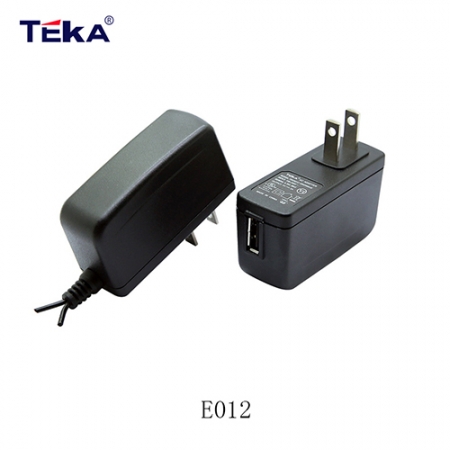

Power Adapter 5W - E012

Power Adapter 5W

Item No.: E012
Click here to send inquiry
Supplier Details
Country: Taiwan
City: Miaoli County
Address: No.2 Lane18,alley333 Chung cheng road Zhunan Town Miaoli County ,350 Taiwan
TEL: +886-37-466060
Fax: +886-37-460345
Online Showroom: 17 Products
INPUT SPECIFICATIONS
 Input Voltage:100~240Vac
 Input Frequency:60Hz/50Hz
 Input AC Current/AC:0.3A
 Inrush Current:30Amax


 OUTPUT SPECIFICATIONS
 Output Voltage:3-36V
 Turn-on Delay Time:3S
 Output Current:0.1-1A
 Output Power Range:0-5W
 Short Circuit Protection
 Ripple And Noise:120mV
 Line Regulation:±5%
 Output Regulation:±5%


 GENERAL SPECIFICATIONS
 Efficiency standard:VI
 Leakage Current:0.25mA
 MTBF:50000H
 Overvoltage protection:120%MIN
 Overcurrent protection:120%MIN
 Operating Temperature:10℃~40℃
 Storage Temperature:-20℃~+80%℃
 Humidity:5~95%RH(non-condensing)
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Power Adapter 5W

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
