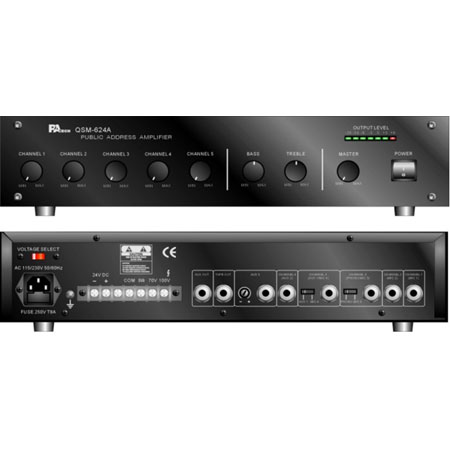

Mixer Amplifier - QSM-624A

Mixer Amplifier

Item No.: QSM-624A
Click here to send inquiry
Supplier Details
Country: Taiwan
State: Taiwan
City: Taipei
Address: No.143,Chung HSing N.St.,San Chung City,Taipei,Taiwan,R.O.C.
TEL: +886-2-29957376
Fax: +886-2-29956772
Online Showroom: 50 Products
Power Supply AC 115/230V 50/60Hz,DC 24V

Power Output 240W RMS

Total Harmonic Distortion <=1%@1 KHz

Sentivity 1/4" Phone Jack (Unbalance)
Channel 1~3(Mic 1~3) 0.5mV@600 ohm
Phone Jack 2mV@50k ohm
Channel 4(Mic 4) 0.5mV@600 ohm
Aux 1 100mV@220K ohm
Channel 5(Aux 2), Aux 3 100mV@10k ohm

Output 100V, 70V, 8 ohm

Signal to Noise Ratio 86dB

Tone Bass 100 Hz +/-10 dB
Treble 10KHz +/-10 dB

AC Power Consumption 640 W @ RATED POWER

DC Power Consumption 15A @ RATED POWER

Dimension 88(H) x 425(W) x 305mm (D)

Weight 10.6 KGS

Mounting FREE STANDING OR 19" RACK

Measurement 1

Gross Weight 13.6 KGS
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Mixer Amplifier

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
