CCD Microscope Camera - MC15

CCD Microscope Camera

Item No.: MC15
Click here to send inquiry
Supplier Details
Country: China
City:
Address:
TEL: +--
Fax: +--
Online Showroom: 41 Products

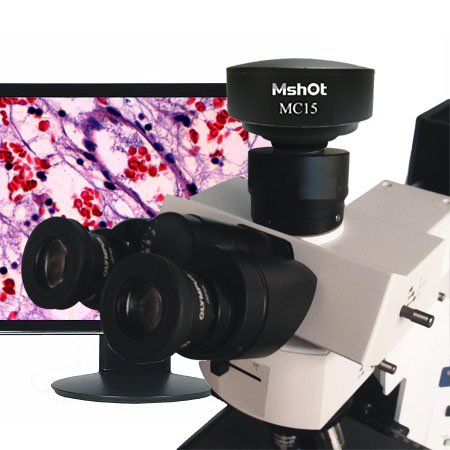

MC15 professional digital microscope Camera, color or monochrome mode, has the useful real-time preview function.

It combines high resolution,high speed and full-preview functions in one. This can guarantee customers enjoy super efficiency and interactivity offerred by MC15.

Focusing, framing, image acquisition and other operations will become a pice of cake via MC15.

No matter it is bright field, dark field or fluorescence,MC15 can capture high quality images.

Even under the condition of dim light,cool MC15 can effectively reduce the thermal noise,caused by long time exposure.

The USB2.0 design of MC15 professional digital microscope Camera makes it easy to realize the connections between PC and the camera.

MC15 is widely used in scientific research, teaching, industrial and agricultural inspection.



Features:

◇ 1360*1024 pixel image resolution (1.4 Mega pixel) 1/2〞icx205 Sony HAD CCD

◇ 4.6 micron pixels that provide high sensitivity and a large dynamic range

◇ Peltier Cooling Mechanism, suppressing thermal background noise and obtain high-contrast images

◇ Easy to use camera control interface with the standard C-Mount

◇ Standard C-MOUNT is widely use in connection between microscope and camera.

◇ USB2.0 Interface means smooth, live preview on the computer display

◇ Supporting third-party software, you can choose the one as you like



Specification:

Item

Specification

Item

Specification

Sensor

1/2″icx205 Sony HAD CCD



Readout noise

12e-

Resolution

1360*1024

Cable

USB2.0 (480 mbit / sec)

Pixel size

4.6μm x 4.6μm

Power

USB

Frame rate

7.5fps@ 1360*1024

Electricity

≈200 mA

Shutter

Electronic

White balance

Manual/Auto  One-touch

S/N ratio

66 dB

Integrate exposure

0.006sec~0.65sec.Auto exposure

Scan mode

Progressive  scanning

Software

Display/Film/Video

Cooled

Peltier cooled

Operating Tem

-10°C ~ 60°C
