IP Receiver

Item No.:

VDKMX01BR

Supplier Details

Country: Taiwan

City: New Taipei City 23144

Address: 7F-7, No.94, Baozhong Road, Xindian District

TEL: +886-2-29160823

Fax: +886-2-29160841

Online Showroom: 63 Products

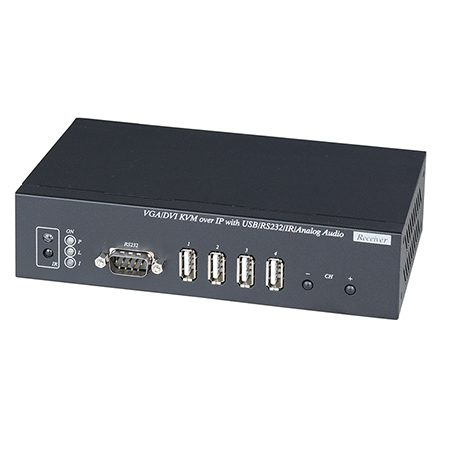

VGA/DVI KVM & USB, RS232 , IR, Audio CAT5 over IP Receiver

Extend and distribute VGA/DVI signal with bi-directional RS232, USB signal, IR and analog audio signals over LAN.
Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) 32bpp@ 60 Hz
Transmission range up to 150M over CAT5e, 180M over CAT6.
Support window based management software, using PC computer for easy setting input/output link.
Support Android/iOS APP control.
Support 2-way RS232 commands at baud rate 115200. Full Duplex data communication.
Built in RS232 distribution function, to send RS232 signal from one TX to multiple RX.
Built in Bi-Directional analog audio transmission (only in point to point mode).
Built in Bi-Directional IR.
Built in 4 ports USB devices (1 port USB 1.1 & 3 Port USB 2.0), to extend USB peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
Use IGMP and Jumbo frame protocol Gigabit Switch Hub to do HD signal distribution and transmission.
