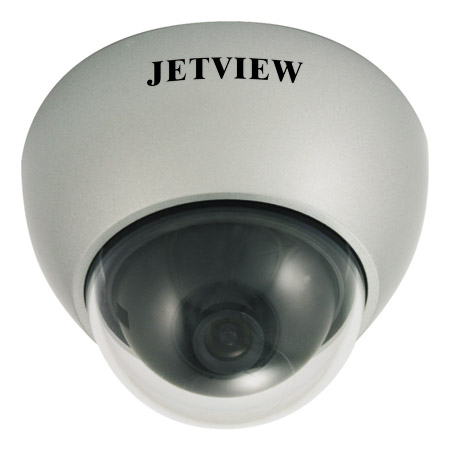

Vandal Proof Camera
Item No.: | X2 Series |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654

Online Showroom:
57 Products
Key Features:
* 1/3" Sony Super HAD
* Resolution: 420TVL
* Lens: 4mm
* Vandl-proof
* Water-Proof: IP66
* Multi-Axis, easy to install
Specification
* 1/3" Sony Super HAD
* Resolution: 420TVL
* Lens: 4mm
* Vandl-proof
* Water-Proof: IP66
* Multi-Axis, easy to install
Specification
Model | JV-1MX2PD |
JV-1MX2ND | |
Image Sensor | 1/3" Sony Super HAD |
Signal System | PAL / NTSC |
Sensitization | 5.59mm×4.68mm |
Effective Pixels | PAL: 500 (H) × 582 (V) |
NTSC: 510(H) x 492(V) | |
Scanning Frequency | PAL: 50Hz |
NTSC: 60Hz | |
Horizontal Resolution | 420TVL |
Electronic Shutter | PAL: 1/50-1/100,000Sec |
NTSC: 1/60-1/100,000Sec | |
S/N Ratio | More than 48dB |
Minimum Illumination | 0.5Lux/F1.2 |
ATW | Automatic |
Video Output | 1.0Vp-p,75Ohm |
Lens | 4mm/6mm/8mm |
Power Supply | DC12V |
Current Consumption | 120mA(Maximum) |
Operation Temperature | -10℃-45℃ |
Dimension | 95x95x65mm |
Weight | 450g |
