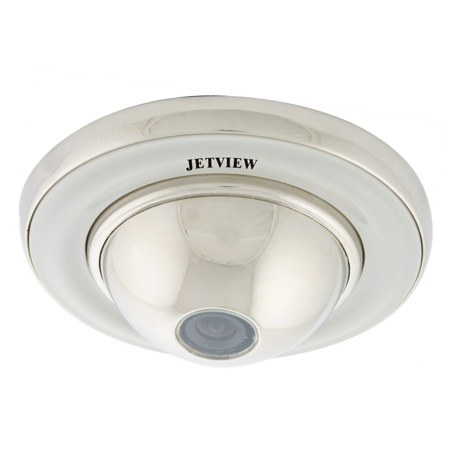

UFO Camera
Item No.: | JV-1C08PZ/ JV-1C08NZ |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654

Online Showroom:
57 Products
Key Features:
* Sony Super HAD II
* Resolution: 420TVL
* Operation Temperature: -15℃~55℃
* Minimum Illumination: 0.01Lux/F1.2
* UFO casing
Specification
* Sony Super HAD II
* Resolution: 420TVL
* Operation Temperature: -15℃~55℃
* Minimum Illumination: 0.01Lux/F1.2
* UFO casing
Specification
Model | JV-1C08PZ | ||
JV-1C08NZ | |||
Image Sensor | 1/3" Sony Super HAD II | ||
Signal System | PAL/NTSC | ||
Effective Pixels | PAL: 500(H)×582(V) | ||
NTSC: 510(H)×492(V) | |||
Horizontal Resolution | 420TVL | ||
Minimum Illumination | 0.01Lux/F1.2 | ||
Synchronization System | Internal | ||
S/N Radiation | More than 50dB | ||
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | ||
White Balance | Automatic | ||
Video Output | BNC 1.0Vp-p, 75Ohm | ||
Lens | 4mm, 6mm, 8mm (Optional) | ||
Power Supply | DC12V | ||
Consumed Current | 150mA (Max.) | ||
Operation Condition | -15℃~55℃, RH85% (Max.) | ||
Net Weight | 300G | ||
Gross Weight | 435G | ||
Product Dimension | 99 x 60mm (D×H) | ||
Pckage Dimension | 108 x 108 x 66mm (L×W×H) |
