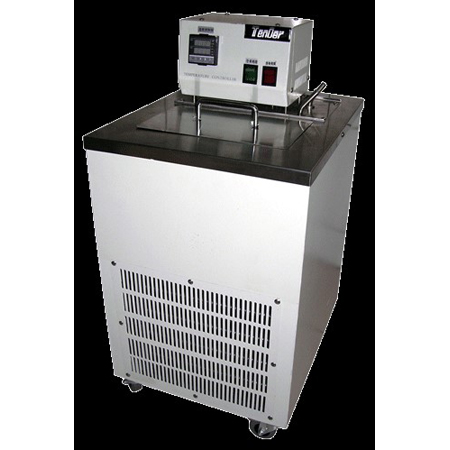

Water Bath Heaters

Item No.:

10-4

Supplier Details

Tender Scientific Co., Ltd

Country: Taiwan

City: Kaohsiung City 802

Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.

TEL: +886-7-7225117

Fax: +886-7-7232465

Online Showroom: 74 Products

Product Details Supplier Profile

Temp. range: -10 ℃ ~ + 100 ℃, Capacity from 6L, 10L, 20L, 30L to 50 L is available, use German made compressor, Japan PID temperature control system, stable and durable.
Suitable for schools, research departments, QC and test laboratory, the machine can cool down, such as vacuum system cooling, laser, electron microscopes, vacuum pump, etc.

Model No.	6B	10B	20B	30B	50B
Temp. Range	-10 ℃ ~ +100 ℃
Temp. Controller	PID touch model microcomputer automatic mathematical exercise & LED double display for temperature control with SSR system
Accuracy	0.05 ℃ PT100Ω Thermocouple
Chamber Material	Stainless steel interior/coating exterior
Safety System	Power and compressor protection
Pump	Water Flow 7~8 L/min ,Stroke Length 3~4m, Stainless Steel Pump, Stirred circulation for good temperatures stability and uniformity
Cooler	1/3HP	1/3HP	1/3HP	1/2HP	1HP
Heater	1200W	1200W	1200W	1200W	2000W
Capacity	6L	10L	20L	30L	50L
Internal dimension	W180X D250X H150mm	W230X D290X H150mm	W290X D490X H150mm	W300X D500X H200mm	W500X D500X H200mm
External dimension	W310X D410X H500mm	W350X D430X H580mm	W400X D620X H580mm	W400X D620X H650mm	W600X D650X H650mm
Cover Dimension	W140X D100mm	W210X D130mm	W270X D320mm	W270X D320mm	W460X D360mm
Power	110V/7A	110V/220V10A/5A	110V/220V13A/6.5A	220V9A	220V13A
