Particle Analyzer
| Item No.: | CPA 2-1 |
Supplier Details
Country: Taiwan
City: Kaohsiung City 802
Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.
TEL: +886-7-7225117
Fax: +886-7-7232465
Online Showroom:
74 Products

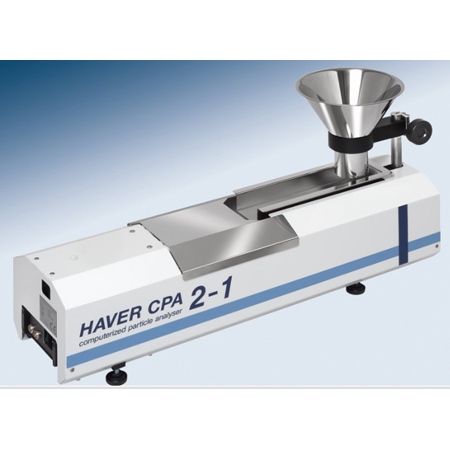

The HAVER CPA 2-1 is a laboratory unit for photo-optical size and shape analysis of dry and non-agglomerating particles of bulk material. It is a base model with best cost-performance ratio. The HAVER CPA 2-1 can be operated using a computer or notebook with current Windows operating systems.
Mobile and flexible in use
-Due to the GigE-camera it can also be operated using a notebook.
-Space saving / little weight.
-Use as a particle counting device.
Specification:
Measuring range:0.034 - 25 mm
Operating voltage:230 Volt, 50 Hertz or 115 Volt, 60 Hertz
Feeder width:65 mm
Camera:CCD-line camera
Lighting source:LED
Protection class:IP 54
Interfaces:BUS-Ext., GigE, USB
Horizontal resolution:2048 pixels
Pixel frequency:50 MHz
Dimensions:730 x 260 x 410 mm (L x W x H)
Weight:approx. 16 kg
【Brand: HAVER&BOECKER/German 】
Mobile and flexible in use
-Due to the GigE-camera it can also be operated using a notebook.
-Space saving / little weight.
-Use as a particle counting device.
Specification:
Measuring range:0.034 - 25 mm
Operating voltage:230 Volt, 50 Hertz or 115 Volt, 60 Hertz
Feeder width:65 mm
Camera:CCD-line camera
Lighting source:LED
Protection class:IP 54
Interfaces:BUS-Ext., GigE, USB
Horizontal resolution:2048 pixels
Pixel frequency:50 MHz
Dimensions:730 x 260 x 410 mm (L x W x H)
Weight:approx. 16 kg
【Brand: HAVER&BOECKER/German 】
