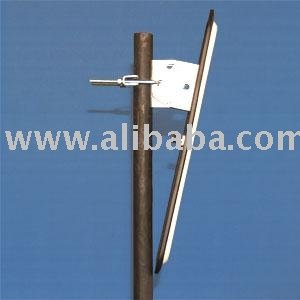

The AS-3.5-14V Sector antenna designed to use with base stations of WiMAX radio networks in range 3400-3700 MHz. The rear wall of antenna made from metal to reduce the back irradiation.PARAMETERSOperating frequency range 3400 to 3700 MHz Antenna power gain 14 dBi Sidelobe level -22 dB Aperture angle at level of -3 dB: In vertical plane 14?/SPAN> In horizontal plane 65?/SPAN> Wave impedance 50 Ohm Connector ?male or female on request N type Polarization ^rizontal Weight of antenna with fasteners 0,4 kg Antenna size 11,5x38,5 cm Material Steel, plastic Installation mast diameter 30-40 mm Manufacturer SS&T, Kharkov, Ukraine DIAGRAMSDiagrams of an orientation of the antenna and its frequency characteristics in horizontal plane in vertical plane standing wave ratio gain INSTRUCTIONSThe antenna attach to mast using one cramp and a rotator. After the correct installation, the antenna fixes by the tightening the two M6 nuts at the side-frames of rotator. GUARANTEEThe antenna is contained in a sealed housing and retains serviceability even in heavy weather conditions, including wet snow, without any noticeable derating. The antenna is accepted for guarantee service when fully completed. The Buyerclaims will not be considered, provided the antenna failed due to misuse or when it has mechanical damages. The guaranteed period is 2 years from the date of sale.
