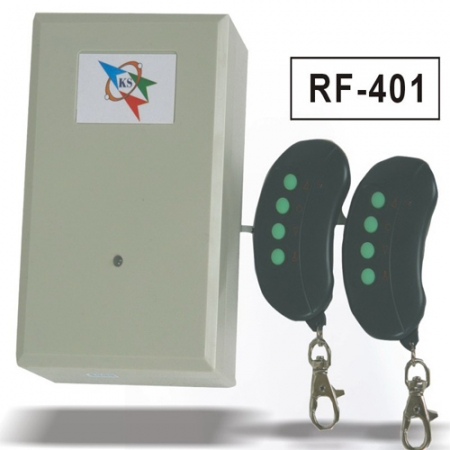

R401 Rolling Gate Remote Control
Item No.: | R401 Rolling Gate Remote Control |

Model Specification |
RF-401 Rolling Gate Remote Control |
Power Supply |
AC100V ~ 240V 50HZ/60HZ |
Range Working Frequency |
315MHZ,345MHZ |
Power Consumption |
Operate : 9mA, Standby : 3.5mA |
Max Load |
120V / 10A , 240V / 5A |
Action Time |
UP : 0.5 sec. STOP : 2 sec. Down : 0.5 sec |
Output |
2 NO/ 1NC |
Code |
28 |
Dimension |
146×97×57 mm |
Operating Temperature |
-5°C~45°C,23°F~113°F |
Relative humidity |
Under 90% |
Weight |
670g |
Operating Temperature |
-5°C~45°C,23°F~113°F |
Sensing Distance |
<30m |
․Functions:
1. All direction can free operate ON/OFF of rolling gate.
2. Any kinds of rolling gate can be installed.
․Characteristics :
1. Stability : Remote control distance will not be changed by weather and comfort to FCC regulation.
2. Convenient : Can be operated by hand or remote control after installed.
․Installation Location: All kinds of rolling gate, electric gate, iron gate.
