PIR-605 Hide Extend Mini Sensor

Item No.:

Supplier Details

Country: Taiwan

City: Taichung

Address: 3F-1,No.210.38th, Rd,Taichung industrial Area,Taichung city,407 Taiwan

TEL: +886-4-23597488

Fax: +886-4-23597499

Online Showroom: 25 Products

Model No.	PIR-605 Hide Extend Mini Sensor
Power Supply	AC100V ~ 240V, 50HZ~60HZ
Max. Load	Tungsten lamp: 600W, Fluorescent lamp:200W,Power saving lamp: 240W
Power Consumption	30mA, standby:15mA
Sensing Angle	arbitrarily Sensing Angle
Sensing Distance	25°C < 8m
Off Delay time	15~600 sec(adjustable)
Dimension	29×65×23mm
Weight	70g
Wiring	2in / 2out
Operating Temperature	-5°C~45°C,23°F~113°F

●Functions :

1. Security and convenience - The lamps always light up when people arrive.

2. Energy saving - Lamps will be off after people leave.

●Characteristics :

1. Free lamps use – Suitable for any kinds of lamps and motherboard can hide into the lampshade.

2. Stability - With the auto light feed up patented design, light will not flash because of near the heat source.

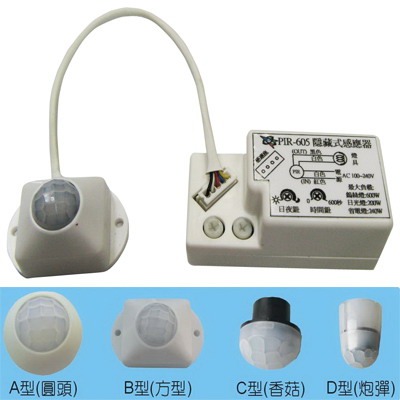

3.Appearance-The size of sensor is so small, and there are four kinds of sensors you can choose.

A type : round ,B type: square, C type: mushroom,D type: bullet.

●Application places: The ceiling of the hallway, door gate, corridor, stairs, garage, balcony and

basement or lamps with lampshades etc…
