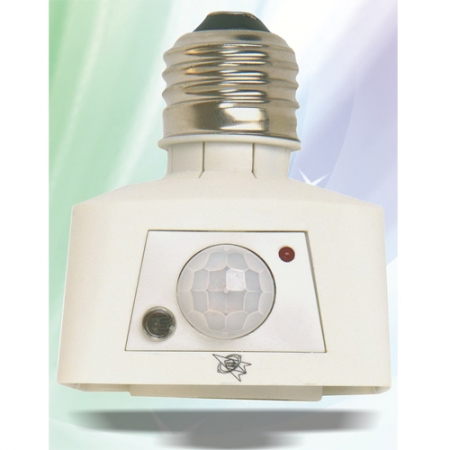

PIR-505 All Direction Screw-in Light Sensor  - PIR-505 All Direction Screw-in Light Sensor

PIR-505 All Direction Screw-in Light Sensor

Item No.: PIR-505 All Direction Screw-in Light Sensor
Supplier Details
Country: Taiwan
City: Taichung
Address: 3F-1,No.210.38th, Rd,Taichung industrial Area,Taichung city,407 Taiwan
TEL: +886-4-23597488
Fax: +886-4-23597499
Online Showroom: 25 Products

Model Specification

PIR-505 All Direction Screw-In Light Sensor

Power Supply

AC110V/220V, 50HZ~60HZ

Load

Tungsten lamp: 60W ,Power saving lamp: 23W and LED.

Power Consumption

13mA

Sensing Angle

Rotation range about 355° < R&L:130 degrees, UP& DOWN:90 degrees.

Sensing Distance

25℃<8m

Off Delay time

Apx.10sec., 90 sec., 330 sec. night

Dimension

60*60*65 mm

Weight

125 g

Wiring

Screw-in Pin



●Functions:

1.Security and convenience – The lamps always light up when people arrive.

2.Energy saving - Lamps will be off after people leave.



●Characteristics :

1. D.I.Y. design - Easy installation and material of body is fireproof /blaze

                          resistance/flash resistance.

2. Free lamps use - All types and brands of lamps can be installed and detect

                        ON/OFF and suitable for E27 socket.

3. Free adjustment - Detective direction and angle can be adjusted freely by

                         turning right or left by 355° .

4. Sensitivity - Detective distance 8 meters at 25°C, even a small action or

                     movement can be detected successfully.

5.With screw-in lamp, the sensor can be turn left or right around 355°, for free

                   adjustment.



●Installation Location: Hallway, door gate, gate, corridor, stairs, garage,

             balcony and basement…
