Model No. |

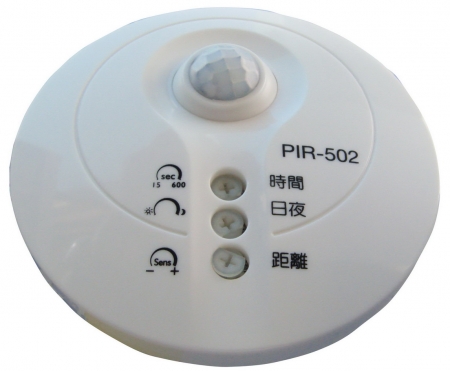

PIR-502 All Direction Light Sensor |
Power Supply |
AC100V ~ 240V, 50HZ/60HZ |
Max. Load |
Tungsten lamp: 600W, Fluorescent lamp:200W,Power saving lamp: 240W |
Power Consumption |
30mA, standby: 15mA |
Sensing Angle |
360 degrees (adjustable) |
Sensing Distance |
25℃<8m |
Off Delay time |
15~600sec.(adjustable) |
Dimension |
100×100×40mm |
Weight |
160g |
Wiring |
2in / 2out |
Operating Temperature |
-5°C~45°C, 23°F~113°F |
●Functions :
1.Security and convenience - The lamps always light up when people arrive.
2.Energy saving - Lamps will be off after people leave.
●Characteristics :
1.Stability
2.Special circuit design: It can resist spark,block.
3.Time 、day & night and distance can be adjustable.
4.It can be installed in wall, ceiling.
●Application places: Hallway, door gate, corridor, stairs, garage, balcony and
basement …etc.
Based on 【 Economy energy environmental protection, Develop innovation, Guide lighting, Best quality】been our spirit. Face to the crisis problem of global warming, economize on energy to reduce carbon, the green environmental protection developments are our most important steps at this moment. We have a strong develop
team and continuously look for innovation and the solving project and hope to make the high-performance lighting for the customer.
More with macro view, the professional innovative technology of prospect, outstanding high-quality product to satisfy different customer's need, and wish to give something back to a society, economize on energy province carbon, rescue green Earth.
All the products produced by Classete Technology including PIR Sensor, RF-Remote Control, DLW-Off Delay Switch, LED Emergency Light not only have the good appearance design also match to the special opinions: green environmental protection technology, high-efficiency economy energy….
We got approval for the standard certification in most of the countries, just like UL Certificate in USA, JET Certificate in Japan, CE Certificate in Europe, TUV/GS Certificate in Germany…..It’s also our pleasure to invite any OEM or ODM company to join this professional technical group.
