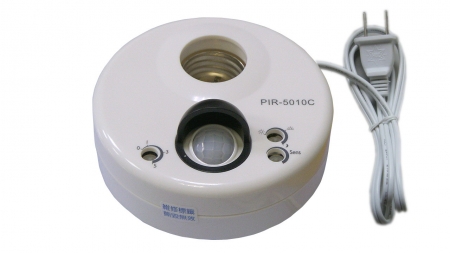

PIR-5010C DIY SENSOR

Item No.:

Supplier Details

Country: Taiwan

City: Taichung

Address: 3F-1,No.210.38th, Rd,Taichung industrial Area,Taichung city,407 Taiwan

TEL: +886-4-23597488

Fax: +886-4-23597499

Online Showroom: 25 Products

Model No.	PIR-5010C D.I.Y. Sensor
Power Supply	AC100V-240V, 50HZ~60HZ
Max. Load	Tungsten lamp: 60W ,Power saving lamp: 23W and LED.
Power Consumption	74mA, Standby: 30mA
Sensing Angle	< R&L:130 degrees, UP&DOWN:90 degrees (at 25°C)
Sensing Distance	25℃<8m
Off Delay time	15~600 sec.(adjustable)
Preparation Time	light flashes 3 times after been electrified.
Dimension	100×100×47mm
Weight	175g
Wiring	AC Plug wire

●Functions:

1.Security and convenience – The lamps always light up when people arrive.

2.Energy saving - Lamps will be off after people leave.

●Characteristics :

1.Stability – With the auto light feed up patented design,

light will not flash because of near the heat source.

2.D.I.Y. design - Easy installation and suit to install in wall.

●Application places: Hallway, door gate, corridor, stairs, garage, balcony and basement etc..
