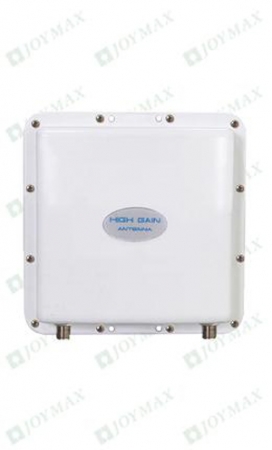

LTE / WiMAX Dual Feed MIMO Patch Antennas
| Item No.: | GPX-026XNFV9 |
Supplier Details
Country: Taiwan
City: Taoyuan
Address: No.5, Dong Yuan Rd.2, Jhongli Industrial Park, Jhongli City, Tao Yuan, Taiwan, R.O.C.
TEL: +886-3-4335698
Fax: +886-3-4335798
Online Showroom:
1 Products
[ FEATURES ]
* 9dBi, LTE 700MHz MIMO Antennas
* LTE/WiMAX Outdoor CPE Solution
* IP-65 Guarantee for Outdoor Application (IP-67 Optional)
* Dual Feed, +/-45° Polarized Antenna Design
* Low Profile & Elegant LOGO Design
* Pole and Wall Mount Available
* Meet RoHS /REACH Compliance
[ SPECIFICATIONS ]
* Frequency Range: 790~ 862 MHz
* Impedance(Ω): 50
* SWR(≦): ≦2.0
* Gain(dBi): 9dBi
* Polarization: Dual +/-45° Slant
* HPBW@ 3dB: 25° @ E-Plane
* 40° @ H-Plane
* Radiation: Directional
* Cable: -
* RF Connector: N Jack * 2
* Height(mm): 260x260x44mm
* Weight(g): 1230g (est)
