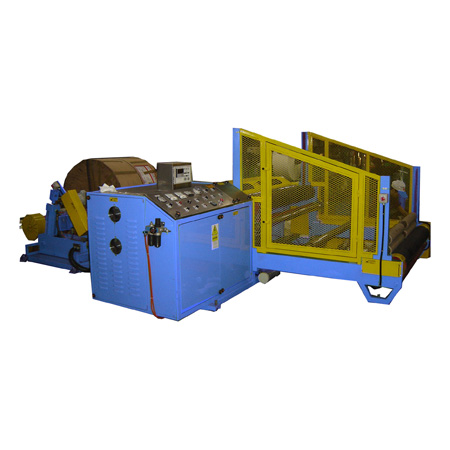

Kraft Paper Slitting Machine

Item No.:

AN-72126

Supplier Details

Country: Taiwan

City: New Taipei City 24257

Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.

TEL: +886-2-29085266

Fax: +886-2-29086355

Online Showroom: 51 Products

Parent roll width: 300 - 1600/mm, 1500mm, 1300mm
Slitting width: 40 - 1600/mm, 50-1500/mm, 25-1200/mm
Parent roll outside dia.: 300∮-1500∮/mm, 1500 ∮mm, 1300 ∮mm
Rewinding outside dia.: 300∮-1200∮/mm, 1000 ∮mm, 1000 ∮mm
Rewinding inside dia.: 76.2 ∮mm, 76.2∮-101.6∮/mm, 76.2∮-101.6∮/mm
Core inside dia. of log: 76.2 ∮mm , 75 ∮mm, 75 ∮mm
Machine speed: 50～300M/min., 5～180M/min., 5～180M/min.
Rewinding axis: Air Shaft
Slitting knife: 20 sets (Upper & Lower knife )
Spacer for slitting knife: Z-shape split type, 2/3/4/5/10/11/20/40mm each 20 pcs.
Tripper stand: Oil pressure type / auto
Edge fixed stand: Pneumatic type
Control: Human Machine Interface + PLC
Edge position controller: Hydraulic
Length encoder.
Parent Roll Stand: by Hydraulicl Cylinder
Auto paper breaker protection.
Auto tension controller: Electro-Pneumatic Converter
