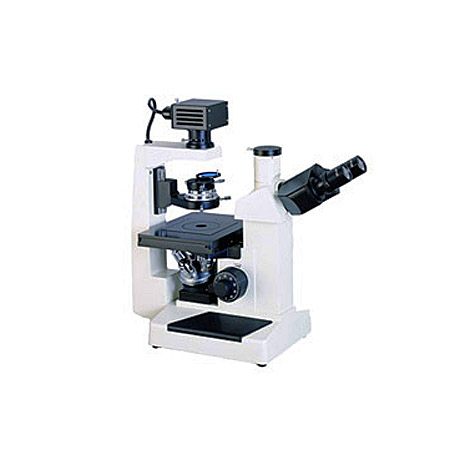

Inverted Microscope

Item No.:

MI11

Supplier Details

www.microscope-camera-manufacturer.com

Country: China

City:

Address:

TEL: +--

Fax: +--

Online Showroom: 41 Products

Product Details Supplier Profile

Inverted microscope MI11, equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance condenser and phase contrast unit,is used observed transparent and unfinished living specimen in culture bottle or culture utensil.MI11 is the ideal instrument for living specimen structure, liquid, deposits research etc. It also widely used in the areas of institutes, universities, medical treatment, agriculture and animal husbandry etc.

Features of MI11:

▲ Wide field eyepieces, long working distance plan achromatic objectives

▲ Phase contrast unit, including long working distance condenser, phase contrast objective and centering telescope

▲ Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ 6V 20W halogen lamp with brightness control

Standard configuration

Model	MI11
Eyepiece	Wide field WF10X(¦µ20mm)
Objective	Long working distance plan achromatic PL L 10X/0.25
	Long working distance plan achromatic PL L 25X/0.40
	Long working distance plan achromatic PL L 40X/0.60
	Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP
Eyepiece tube	Trinocular (Inclination of 30°, 100% image light for photography capable)
Focus system	Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece	Quadruple(Ball bearing inner locating)
Stage	Double layer mechanical(Size200mmX152mm,moving range:75mmX30mm)
Shelf of specimen	Match to install ¦µ68mm or 77mmX33mm culture utensil
Shelf of specimen	Match to install ¦µ68mm culture utensil
Filter	Blue filter
	Green filter
	Frosted filter
Impellent style phase contrast unit	Centering telescope
	10X Impellent style phase plate
	Condenser Rack & pinion adjustable, NA=0.4,working distance: 30mm
Light source	6V 20W Halogen lamp with brightness control.

Optional accessories

Name	Sort/Technique parameter
Eyepiece	WF16X(¦µ11mm)
	Dividing 10X(¦µ20mm), 0.1mm/Div
Nosepiece	Quintuple(Ball bearing inner locating)
Condenser	Ultra long working distance,W.D.:70mm
Filter	Yellow filter
Impellent style phase contrast unit	Objectives	Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP
		Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP
	Impellent phase plate	25X
		40X
Sliding phase contrast unit	Objectives	Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
		Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
		Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
	Sliding phase plate	10X
		25X/40X
	Condenser Rack & pinion adjustable, NA=0.4,working distance: 55mm
Digital Camera	MD10/20/30/50/90
	MC15/20/30/50
camera adapter	Canon, Nikon, Olympus SLR etc.
