Hydraulic Machine Vise
Item No.: | UMV-Type |
Supplier Details
Country: Taiwan
City: Taichung
Address: Street, North Dist.
TEL: +886-4-27021234
Fax: +886-4-27014321

Online Showroom:
88 Products

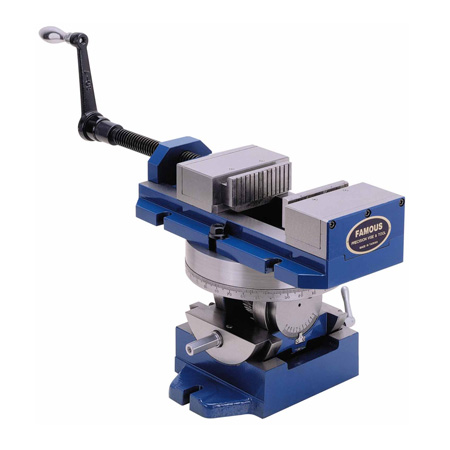

UMV-Type Swivel Vise With Universal Clamping
Unit: mm
Features:
1. Table 360° swivel.
2. 45° tilt to front, rear, left and right.
3. Suitable for all kinds of slant processing, drilling and milling, etc...
4. This vise associated with a swivel base can clamp workpiece in any shapes including round, polygon and angularity.
5. Vise maximum clamping force 1200kgf
6. FCD-45 high malleable casting iron.
Unit: mm
Model | A | B | C | D | E | F | H | I | M | N.W.(kg) |
UMV | 265 | 162 | 127 | 0-122 | 170 | 450-572 | 236 | 46 | 12 | 45 |
Features:
1. Table 360° swivel.
2. 45° tilt to front, rear, left and right.
3. Suitable for all kinds of slant processing, drilling and milling, etc...
4. This vise associated with a swivel base can clamp workpiece in any shapes including round, polygon and angularity.
5. Vise maximum clamping force 1200kgf
6. FCD-45 high malleable casting iron.
