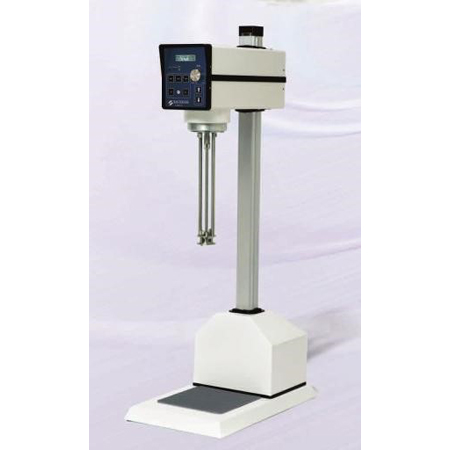

Tissue Homogenizer
Item No.: | 12-1 |

Applies to: experiments, research and development
L5 series more than 40 kinds of combinations can be replaced, apply to: pathology, bacteria, food, cosmetics, animal and plant tissues, bones and so on, easy disassembly, cleaning, structure of stainless steel 316L, in a safe state, organizations can be crushed, avoid infection.
Difference between L5M-A and L5M/L5T:
Power rating: L5M-A(1hp), L5M/L5T(0.33hp)
Watts: L5M-A(750W), L5M/L5T(250W)
Motor Specification | | L5M-A Functions via touch pad controls |
Power rating | 1hp | Digital tachometer |
Drive speed | Infinitely variable speed | Integral programmable timer |
Nominal maximum speed 8000 rpm | Amperage display | |
Frequency | 50 Hz | Constant speed setting |
Voltage | 220 V | |
Watts | 750 W | |
Phase | 1 (single) |
Motor Specification | | L5 model range |
Power rating | 0.33hp | L5M Digital tachometer |
Drive speed | Infinitely variable speed | Integral programmable timer |
Nominal maximum speed 8000 rpm | Amperage display | |
6000 rpm under full load | Constant speed setting | |
Frequency | 50 Hz | L5T Digital tachometer only |
Voltage | 220 V | |
Watts | 750 W | |
Phase | 1 (single) |

A wide range of decomposition head for the difference sample:
1. General Decomposition head
2. High shear square head
3. Emulsifying head round hole
4. Stirring pumping to head
5. Decomposition strip head
6. Pump head
Optional:
It may also apply to:
a round tube exploded emulsifying head, according to the capacity of many options
