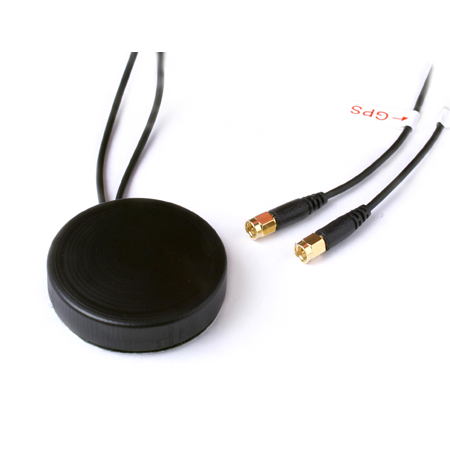

GPS+GSM/CDMA Antenna
Item No.: | EPH-600 |
Supplier Details
Country: Taiwan
State: Taiwan
City: CHANG HUA
Address: DONGSHI ST., XIZHI CITY, TAIPEI COUNTY 221
TEL: +886-2-26913490
Fax: +886-2-26914231

Online Showroom:
41 Products
The EPH-600 is the multi-band antenna, which covers GPS/850/900/1800/1900/2100
MHz frequencies. It is specially designed for any telemetry applications, which utilize those bands. The high sensitivity of EPH-600 will enhance the performance of your telemetry devices.
Features:
1. Low profile structure without a whip
2. Both permanent and magnetic mountings are available
3. Covers all the mobile communication network
4. Fully waterproof
Applications:
1. Vehicle tracking
2. Asset tracking
3. GPS Navigation
4. Telemetry Application
Specification:
Category GPS Antenna Communication Antenna
Frequency 1.57542GHz (L1 BAND) 824 MHz ~ 894 MHz (GSM 850MHz)
890~960 MHz (GSM 900MHz)
1710~1890 MHz (DCS 1800MHz)
1850 ~ 1990 MHz (PCS 1900MHz)
2.1G
Gain(Without Cable) 27dB 1.7dBi
V.S.W.R < 1.8. < 2.0 (with 3m cable)
Noise Figure 1.2 Max -
Band Width 2 MHz 136MHz for frequency of 824MHZ-960MHz
280MHz for frequency of 1710Mhz–1990MHz
830MHz for frequency of 2400-2483
Impedance 50 Ohm 50 Ohm
Cable/Connector 5 Meter-RG174/FME 5 Meter-RG174/SMA
Polarization R.H.C.P Linear
Power supply 3.0 ~ 5.5V DC -
Power Consumption 12mA -
Power Handling Capacity - 10W
Dimension 63mm(Dia.) x 15.6mm(H)
Operation Temperature -40degC to +80degC
Storage Temperature -45degC to +100degC
