D-Sub connector Female 180° DIP - DSBSS-FXXXXB107IILPG

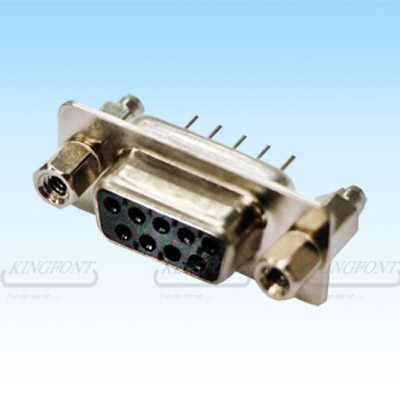

D-Sub connector Female 180° DIP

Item No.: DSBSS-FXXXXB107IILPG
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 17F.-3, 738, Zhongzheng Road., Zhonghe Dist., New Taipei City 235, TAIWAN (R.O.C.)
TEL: +886-2-82261520
Fax: +886-2-82262124
Online Showroom: 17 Products

Product Name:D-SUB FEMALE 180° DIP
Part No:DSBSS-F XX XX  B107IILPG
                         (1)  (2)
          (1) PIN Number
                            09: 9 pin
          (2) Contact area plating:
                            01: Gold flash plating
                            30: 30u” Gold plating


Pitch: 2.77mm
Number of port: 1
Circuits: 9
RoHS compliant
Net Weight: 9.5g
Packing: Tray: 50pcs/Tray; 20trays/Carton


APPLICATION:
   1. D-sub connectors are often found on communications ports, creating connections between different products such as computers, printers, and power supply units.
   2. Computer video output / Game controller ports /Multi-channel analog


SPECIFICATION:
   Electrical:
        1.      Contact current rating: 3A
        2.      Dielectric Withstanding Voltage: 500VAC
        3.      Contact resistance: 30 milliohms MAX
        4.      Insulating Resistance: 1000Ω MIN.
   Environmental:
        Operating temperature: -55℃ ~ 85℃
   MATERIAL:
        1. Shell: SPCC
        2. INSULATOR: PBT
        3.Contact: Copper Alloy
        4.Screw: Copper Alloy


PRODUCT FEATURES:
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

D-Sub connector Female 180° DIP

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
