Directional Antenna - UHH-101

Directional Antenna

Item No.: UHH-101
Supplier Details
Country: Taiwan
State: Taiwan
City: CHANG HUA
Address: DONGSHI ST., XIZHI CITY, TAIPEI COUNTY 221
TEL: +886-2-26913490
Fax: +886-2-26914231
Online Showroom: 41 Products

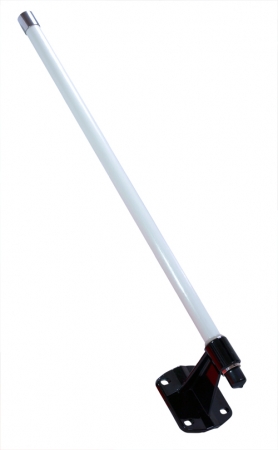

Omni-Directional High Gain Antenna

Frequency : 5725 ~ 5825 MHz
Gain : 7.5 ±0.5dBi
VSWR : <= 1.8
Impedance : 50 ohm
Standard Connector : N-Female
Dimension : 550(H) x 81(W) x Ø78mm
Operating Temperature : -40゚C ~ +80゚C
Power Handling Capacity : 50W
Polarization : Linear Vertical
Weight : 380g



More Spec :


Horizontal Beam-with: 360
Vertical Beam-with: 25
Survival wind speed: 180k m/hr
Humidity: 100%@25゚C
Radome Material: White Fiberglass
Radome Color: Gray-White
Radome material: PCB micro stripe



We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Directional Antenna

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
