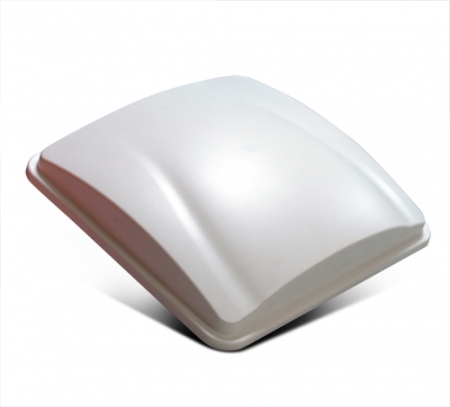

Directional Antenna - UPH-209

Directional Antenna

Item No.: UPH-209
Supplier Details
Country: Taiwan
State: Taiwan
City: CHANG HUA
Address: DONGSHI ST., XIZHI CITY, TAIPEI COUNTY 221
TEL: +886-2-26913490
Fax: +886-2-26914231
Online Showroom: 41 Products

5.2G/5.8GHz Directional High Gain Antenna

Frequency : 5150~5325MHz , 5725~5825MHz
Gain : 14 ±0.5dBi , 17.5 ±0.5dBi
VSWR : <= 1.8
Impedance : 50 ohm
Standard Connector : N female
Dimension : 260(H) x 260(W) x 45(D)mm
Operating Temperature : -40? ~ +80?
Power Handling Capacity : 50W
Polarization : Linear Vertical
Weight : 1.2 kgw



More Spec :
Horizontal Beam-with: 35
Vertical Beam-with: 35
Survival wind speed: 180Km/hr
Lightning Protection: DC ground
Radome color: Gray-white
Radome material: ABS, Zinc casting
Humidity: 100%@25゚C
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Directional Antenna

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
