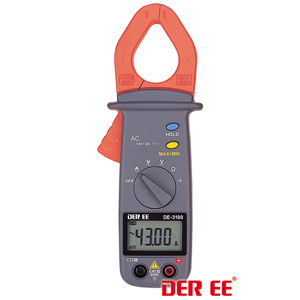

DE-3100 AC Clamp Meter (Pocket Size)
| Item No.: | DE-3100 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI CITY
Address: 1FL. NO.3, ALLEY 2, LANE 74, YUH HSI ST., YONGHE DIST., NEW TAIPEI CITY 234, TAIWAN (R.O.C.)
TEL: +886-2-22266789
Fax: +--
Online Showroom:
78 Products
Auto
Power Off Selection
Auto Range
True RMS(DE-3100R/DE-3102R)
Data Hold
Max. / Min. Hold
Resolution 0.01A
Pocket Size
High Accuracy
Specifications：
Clamp Size : φ30mm or 10x35mm
LCD Display : 3 3/4 Digits LCD With 4300 Counts
Applicable Circuit Voltage : AC 600V or less
Sampling Reading Rate : 2 Times/ Sec. Approx.
Range : Automatic
Applicable Height : Up to 2000m (above sea level)
Auto Power Off : Approx. 10 Minutes
Over Range Protection : “OL” Display on LCD and Beep
Low Battery : Display on LCD
Battery : AAA Battery 1.5V x2
Safety standard : IEC 61010-1 ,IEC 61010-2-032 600V CAT III Pollution Degree 2
Temp./Humidity :
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension& Weight :
189(L)x50(W,Max71)x30(H,Max47)mm
Approx.200g (Including battery)
Accessories :
Battery AAA 1.5V x2
Instruction Manual x1
Test Leads (red+black)for DE-3100/DE3100R x1
Carrying case x1
Optional Accessories :
AC Line Splitter(DE-10ALS)
Auto Range
True RMS(DE-3100R/DE-3102R)
Data Hold
Max. / Min. Hold
Resolution 0.01A
Pocket Size
High Accuracy
Specifications：
Clamp Size : φ30mm or 10x35mm
LCD Display : 3 3/4 Digits LCD With 4300 Counts
Applicable Circuit Voltage : AC 600V or less
Sampling Reading Rate : 2 Times/ Sec. Approx.
Range : Automatic
Applicable Height : Up to 2000m (above sea level)
Auto Power Off : Approx. 10 Minutes
Over Range Protection : “OL” Display on LCD and Beep
Low Battery : Display on LCD
Battery : AAA Battery 1.5V x2
Safety standard : IEC 61010-1 ,IEC 61010-2-032 600V CAT III Pollution Degree 2
Temp./Humidity :
Operation：0°C~ 50°C(32℉~122℉)/<80% R.H.(no condensation)
Storage：-10°C~ 60°C(14℉~140℉)/<70%R.H.(no condensation)
Dimension& Weight :
189(L)x50(W,Max71)x30(H,Max47)mm
Approx.200g (Including battery)
Accessories :
Battery AAA 1.5V x2
Instruction Manual x1
Test Leads (red+black)for DE-3100/DE3100R x1
Carrying case x1
Optional Accessories :
AC Line Splitter(DE-10ALS)
