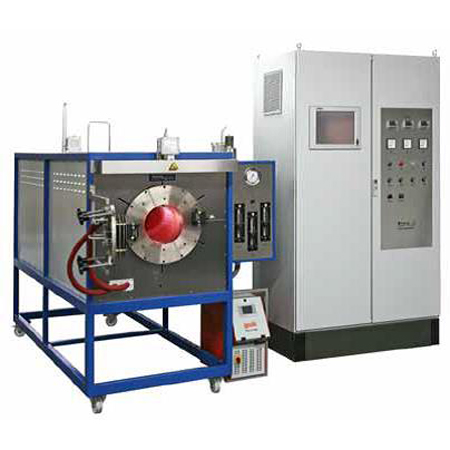

Tube furnace for fast cycle times.
For heat treatment of powders and granulates, for brazing and annealing processes at inert or reducing atmosphere.
T max: 1100 °C
Inside diameter of insert tube (Inconel) approx. 250 mm, length 2150 mm
Heated length: 2000 mm
Heating power: approx. 35 kW
Options: Gas feeding device, burn-off device with flame supervision, several program controllers, temperature measuring by trailing thermocouple, tempering device for door cooling (120 °C) to prevention of condensate, different materials for insert tubes depending of temperature, vacuum.
Adaptable to customer’s individual requirements.
【Brand： Linn/German 】
