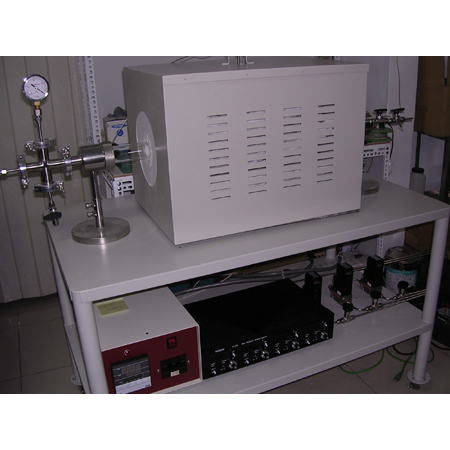

CVD Tube Furnace
| Item No.: | 6-1 |
Supplier Details
Country: Taiwan
City: Kaohsiung City 802
Address: 3F.-2, No.372, Zhongzheng 1st Rd., Lingya Dist.
TEL: +886-7-7225117
Fax: +886-7-7232465
Online Showroom:
74 Products
Specifications:
1. Temperature range: 1200 ℃
2. Continuous Use Temperature: 1150 ℃
3. The heating zone length: 450 mm
4. The inner diameter: Φ50mm
5. Maximum voltage: 2.0 Kw
6. Power source: 220V / 1N
7. tube diameter: 50 mm
8. Temperature Control System: two groups of 8 programmable control
9. Temperature mining Low thermal mass insulation
10. Quartz tube: 50 * 46 * 800mm x 1 pc
11. Vacuum accessories:
a. air-inlet part: stainless steel 1 set
b. air-outlet part: stainless steel 1 set
c. cross stainless steel fitting 1 set
d. ball valve and connector 1 set
12.Vacuum Pump 50L / min 1 station
13. Mass flowmeter 3 channel
a: MFC5850E 1/4 "SWG 500sccm non-corrosive gases
b: PC-540 Power Supply
[Brand: TENDER / Taiwan]
1. Temperature range: 1200 ℃
2. Continuous Use Temperature: 1150 ℃
3. The heating zone length: 450 mm
4. The inner diameter: Φ50mm
5. Maximum voltage: 2.0 Kw
6. Power source: 220V / 1N
7. tube diameter: 50 mm
8. Temperature Control System: two groups of 8 programmable control
9. Temperature mining Low thermal mass insulation
10. Quartz tube: 50 * 46 * 800mm x 1 pc
11. Vacuum accessories:
a. air-inlet part: stainless steel 1 set
b. air-outlet part: stainless steel 1 set
c. cross stainless steel fitting 1 set
d. ball valve and connector 1 set
12.Vacuum Pump 50L / min 1 station
13. Mass flowmeter 3 channel
a: MFC5850E 1/4 "SWG 500sccm non-corrosive gases
b: PC-540 Power Supply
[Brand: TENDER / Taiwan]
