Durability and endurance even in the harshest environment

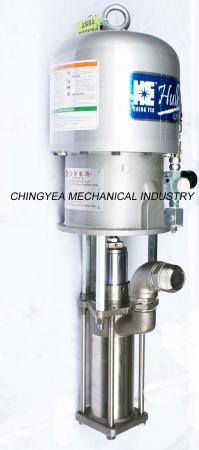

COSMOSTAR CY-0166 transfer pumps are designed to work under the toughest condition. Built-in with 7 inches FLASH air motor that generates up to 5:1 ratio output pressure, CY-0166 transfer pumps are customized to transfer very viscous materials with high flow rate (up to 60 liters/minute).

Features and Benefits
Positive displacement provides high output per cycle to reduce pump wear and maintenance
Small displacement rod design reduces sealing area to minimize throat leakage

Typical Applications
Paint circulation
Fluid transfer and supply

Typical Fluids Handled
Waterborne paints
Solvent borne paints
Acid catalyzed varnishes, enamels and lacquers


Air motor diameter     7 in (FLASH)
Pressure ratio     5:1
Maximum Fluid Working Pressure    600 PSI (40 Bar)
Maximum Air Input Pressure    120 PSI ( 8 Bar)
Maximum volume flow rates     60 LPM
Maximum Recommended Pump Speed    60 cycles per min;
Air inlet size     1/2 npt(f)
Fluid inlet size     2 npt(f)
Fluid outlet size      1 npt(f)
Weight      55.2 kg
Dimension      1.17 m (length)
