Designed for high output per cycle, high power and performance.

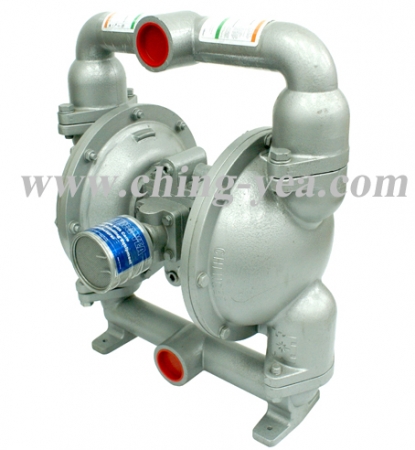

The CY-0908 is designed to handle high viscous fluid and to deliver high flow rate. Large sized, solid, chemically-inert Teflon plates in both compartments make CY-0908 suitable to pump wide variety of liquids, even the most aggressive ones.

Features and Benefits
Bigger ports for higher flow rates, up to 620 liters per minute
Lubrication-less operation
Designed for tough environments

Typical Applications
Drum fluid transfer
Unloading fluids
Chemical evacuation

Typical Fluids Handled
Chemicals
Contaminated surface water
Adhesives, varnishes, dispersions, solvents and stains
Resins, latexes, wood preservative stains, concrete paints and primers

Technical Data
Maximum Fluid Working Pressure    8 BAR
Maximum Flow Delivery     620 LPM
Maximum pumpable fluid viscosity     10000 CPS
Maximum Air Consumption    5500 LPM
Maximum suction lift    8.1 m
Maximum size pumpable solids     7 mm
Air pressure operating range     2 - 8 BAR
Air Inlet Size     3/4 npt (f)
Fluid Outlet Size     2 npt (f)
Fluid Inlet Size     2 npt (f)
Weight      38 kg (Aluminum)
