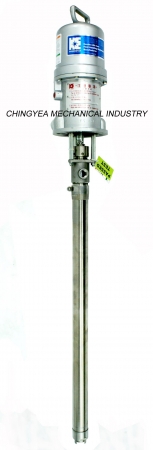

COSMOSTAR CY-1312 transfer pumps concentrate on handling high viscous materials. Also equipped with 6 inches COMPACT transfer pumps that generate up to 10:1 output pressure ratio, CY-1312 transfer pumps guarantee a smooth handling of high viscous materials with adequate flow-rate (up to 10 liters/minute).

Features and Benefits
Reliable medium pressure supply
Pressure output capacity of 1200 PSI (80 Bar).
2-ball provides pump operation for uniform flow

Typical Applications
Texture spraying
Adhesive supply
Cleaning

Typical Fluids Handled
Textured materials
Adhesives and sealants
Polyester

Technical Data
Air motor diameter     6 in (COMPACT)
Pressure ratio     3:1
Maximum Fluid Working Pressure    360 PSI (25 Bar)
Maximum Air Input Pressure    120 PSI ( 8.3 Bar)
Maximum volume flow rates     38 LPM
Maximum Recommended Pump Speed    60 cycles per min;
Air inlet size      3/8 and 1/2 npt(f)
Fluid inlet size     1-1/2 npt(f)
Fluid outlet size      3/4 npt(f)
Dimension      1.48 m (length)
Weight      25 kg
