Designed for high output per cycle, high power and performance

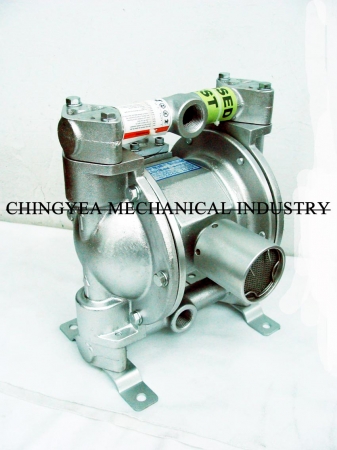

Ideal for transferring a wide variety of fluids., CY-0906 offers high pumping capacity in a small package. CY-0906 pumps guarantee high endurance and durability.

Features and Benefits
High Flow rate, up to 175 liters per minute, in a small portable package
Clean, hands-off fluid handling
High performance with high mobility

Typical Applications
Drum fluid transfer
Unloading fluids
Chemical evacuation

Typical Fluids Handled
Chemicals
Contaminated surface water
Adhesives, varnishes, dispersions, solvents and stains
Resins, latexes, wood preservative stains, concrete paints and primers

Technical Data
Maximum Fluid Working Pressure    8 BAR
Maximum Flow Delivery     175 LPM
Maximum pumpable fluid viscosity     5000 CPS
Maximum Air Consumption    1600 LPM
Maximum suction lift    8.3 m
Maximum size pumpable solids     3.0 mm
Air pressure operating range     2 - 8 BAR
Air Inlet Size     1/2 npt (f)
Fluid Outlet Size     1 npt (f)
Fluid Inlet Size     1 npt (f)
Weight      13.5 kg(Aluminum)
 26 kg(stainless steel)
