Bottling Machine - DGX24246

Bottling Machine

Item No.: DGX24246
Supplier Details
Country: China
State: Guangdong
City: Shenzhen
Address: Chegongmiao
TEL: +86-755-1234567
Fax: +86-755-1234567
Online Showroom: 226 Products

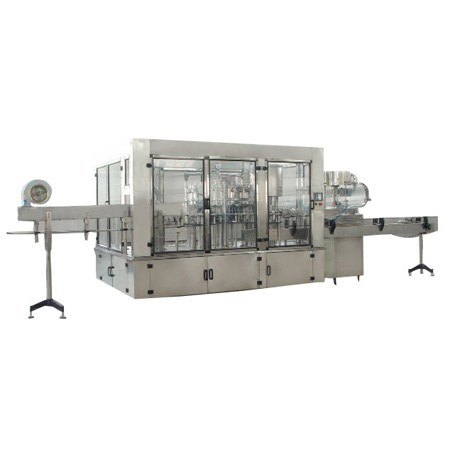

Automatic small bottle washing, filling and capping machine (3 in 1 )


This series equipment is used to produce all kinds of carbonated drink contained in PET bottle. Washing, filling, cap-pingcan be carried out on this machine. This machine has the following characteristics: scientific reasonable design, bea-utiful appearance, complete function, convenient maintenance, high automation.



(1) The suspending bottle-necks cramping design makes the whole production line more stable during the working process it also avoids malfunctions caused by the differences ofthickness height of the bottle. This design also dramatically reduces the required numberof changeable parts, makes it more convenient to change the types of bottles.
(2) The advanced technologies from Germany Italy are introduced. Isobaric filling technology is used in this machine. Filling is quick the amount of the liquid can be controlled accurately. Also, the beverage-holding tank is fully-closed the CIP in-terface is installed.
(3) Magnetic torque is used for screw capping, the power of screw capping can be adjusted steplessly. It can use constant power to screw the plastic caps will not damage the caps.
(4) Human-machine interface touch-screen is adopted in this machine. The liquid level in the tank can be controlled automatically.The filling capping will stop automatically when there is no bottle.
(5) All parts that have direct contact with the beverages are made of high quality stainless steel. And the main electrical components are from famous international companies.

Model No

DGX24246

Production Capacity(bph)(500ml)

6000-8000

Applicable Bottle Type

Bottle Diameter: Φ50-Φ100mm; Height: 150-320mm;

Bottle Volume: 330-1500ml

Applicable Cap Shape

Plastic Screw Cap

Filling pressure (Mpa)

≤0.4

Air Source Pressure(Mpa)

0.6

Air Consumption(m3/min)

0.4

Total Power(kw)

6.4

Washing head

24

Filling head

24

Capping head

6

Total Weight(kg)

5800

Dimension(L*W*H)(mm)

3220 x 2400 x 2600


We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Bottling Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
