Bottling Machine - CGX18186

Bottling Machine

Item No.: CGX18186
Supplier Details
Country: China
State: Guangdong
City: Shenzhen
Address: Chegongmiao
TEL: +86-755-1234567
Fax: +86-755-1234567
Online Showroom: 226 Products

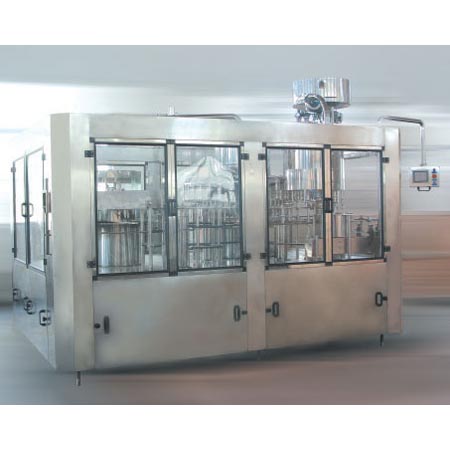

Automatic small bottle washing, filling and capping machine (3 in 1 )

Rinsing/ washing + Filling + Cappin




This series equipment is used in the production of non-carbonated drink ,such as mineral water purified water,etc. Washing, filling capping are integrated into one machine.



1) The suspending bottle-neck clamping design make the bottle stable during the high-speedmoving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
2) The new generation of stainless steel grab is adopted the grabs have no contact with the area above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
3) The advanced gravity filling technology used in this machine makes the filling quick, steady accurate.

Model No

CGX18186

Production Capacity(bph)(500ml)

7000-8000

Applicable Bottle Type

Bottle Diameter: Φ50-Φ100mm; Height: 150-320mm;

Bottle Volume: 330-1500ml

Applicable Cap Shape

Plastic Screw Cap

Air Source Pressure(Mpa)

0.6

Air Consumption(m3/min)

0.4

Total Power(kw)

5.4

Washing head

18

Filling head

18

Capping head

6

Total Weight(kg)

3800

Dimension(L*W*H)(mm)

1830x2030x2030


We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Bottling Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
