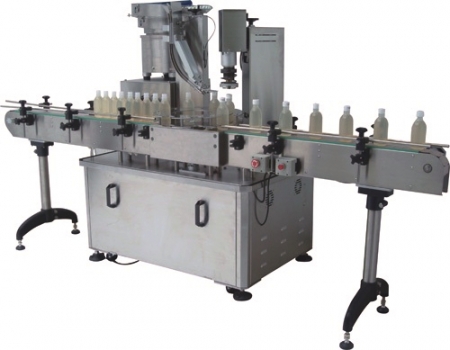

High Speed Rotary Capping Machine CR-435 is versatile monobloc starwheel based, fully automatic capping machine which can be customised to suit the application. It can be integrated into an existing line or supplied as a self contained unit with in-feed, out-feed systems and conveyors with options for filling, plugging, capping and many other features.

FEATURES:

·         Servo motor torque capping heads control torque digitally
·         PLC Control system combined with HMI(touch screen)
·         Automatic Cap elevator, feed and place cap at once
·         Digital output torque adjustment
·         Emergency stop and Three -color indicate light
·         Continuous capping 「No Bottle,No Cap」Design
·         Heavy-duty conveyor by MCC slat top-chain
·         Linear Cutting capping head to ensure
·         Quick swap change parts
·         20 slots memory recall
·         Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement
·         Water-proof with IP54 grade
·         Safety interlocks with clear acrylic guard, auto-stop when door is open


SPECIFICATIONS:
·         Cap type：Screw and press cap (Customized cutting)
·         Standard Cap Size: 25mm – 60mm O.D
·         Capping Speed: 30 ~40 Bottles/min
·         Air Requirements: 90 PSI @ 3 CFM6Kg
·         Power：single phase 110/220VAC, 50/60Hz
·         Machine Dimension:(L)2758mm (W)1237mm (H)1800mm
