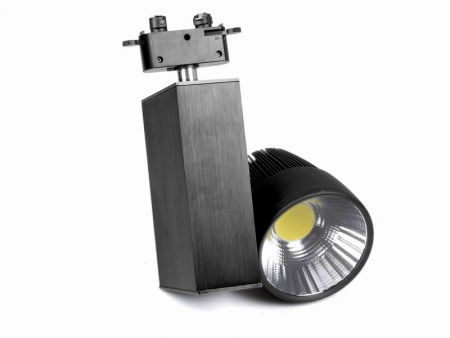

20W COB LED track rail lights for shop lighting
| Item No.: | EW-TL-COB-20W |
Supplier Details
Country: China
City: Shenzhen
Address: Tong'an Hengye Building,NO3 of Tianxin Blvd,Shiyan Town,Baoan District,Shenzhen,China
TEL: +86-755-36863926
Fax: +86-755-82780858
Online Showroom:
30 Products
Specifications
1.led COB track rail light
2.CRI: 82
3.Output:1800-2000lm.
4.Connection: 2-way, 3-way, 4-way.
5.Certificate: CE/RoHS/SAA/SAS
20W COB LED track rail lights for shop lighting
Products Features:
(1)LED Power: 20W.
(2)Lamp Consumption:24W.
(3)Output: 1700-2000lm.
(4)Input voltage:100-277v AC, 50-60hz
(5)Beam Angle:30°/60°
(6)CRI:> 80.
(7)Working Temperature:-40°C-45°C.
(8)Storage Temperature: -25°C-65°C.
(9)Color of housing: white, black, silver.
(10)Track connector: 2-way, 3-way, 4-way available.
(11)Life span: 50,000+hrs.
(12)Certificate: CE/RoHS/SASO
(13)Warranty: 3 years.
COB Parameter:
(1)PCB: Ceramic.
(2)Chip Brand: Epistar 10*23.
(3)Output: 2000-2300lm.
(4)Chip Qty: 350 pcs.
(5)CRI> 82.
(6)Voltage:30-36vDC
(7)Current: 700-800mA.
Driver Parameter:
(1)Brand: Lifud (LED Friend).
(2)Input:100-277v AC.
(3)Output: 27-42vDC, 700mA.
(4)Power effect: 0.9-0.97.
(5)Power Efficiency: 85%
(6)Certificate:CE/TUV/UL/CQC/SAA
